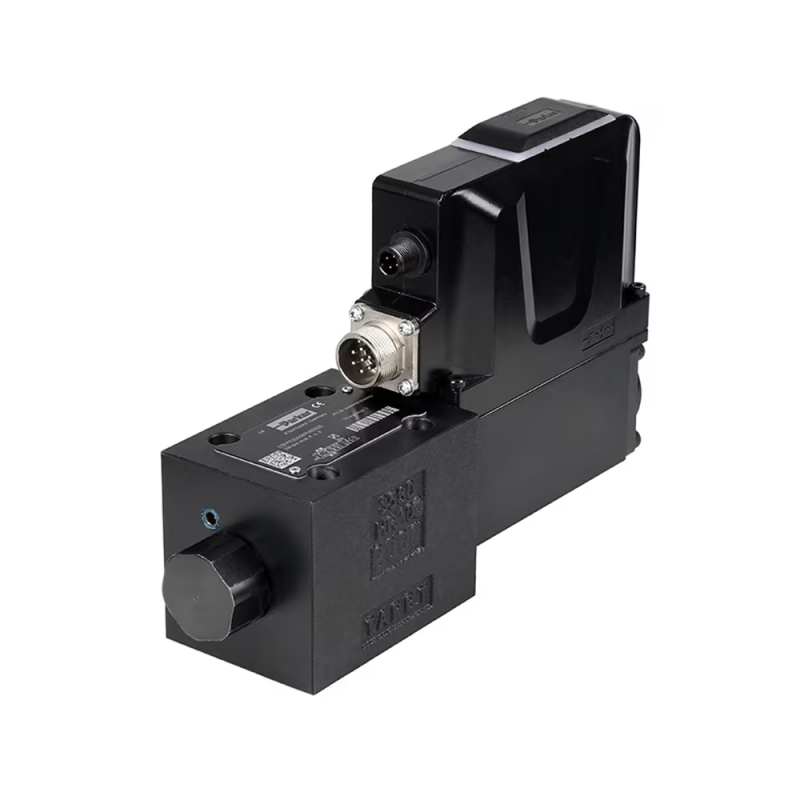

D30FP Series Pilot Operated Proportional Directional Control Valve
Description:
The D30FP Series Pilot Operated Proportional Directional Control Valve is designed for precise control of hydraulic flow in industrial machinery. It ensures smooth operation, high efficiency, and reliable performance in demanding environments. Ideal for mobile and stationary applications, it delivers responsive proportional control with robust construction and long service life.
share:
D30FP Series Pilot Operated Proportional Directional Control Valve
| Specification | D30FP Series |
|---|---|
| Type | Pilot Operated Proportional Directional Control Valve |
| Flow Rate | 30–150 L/min |
| Max Pressure | 250 bar |
| Control Type | Electrical proportional control |
| Response Time | ≤50 ms |
| Nominal Voltage | 12V / 24V DC |
| Operating Temperature | -20°C to +70°C |
| Mounting | Subplate mount |
| Materials | High-strength steel, anodized aluminum |
| Seal Type | NBR / FKM optional |
| Weight | 12–18 kg |
| Applications | Industrial machinery, mobile hydraulics, automation systems |
