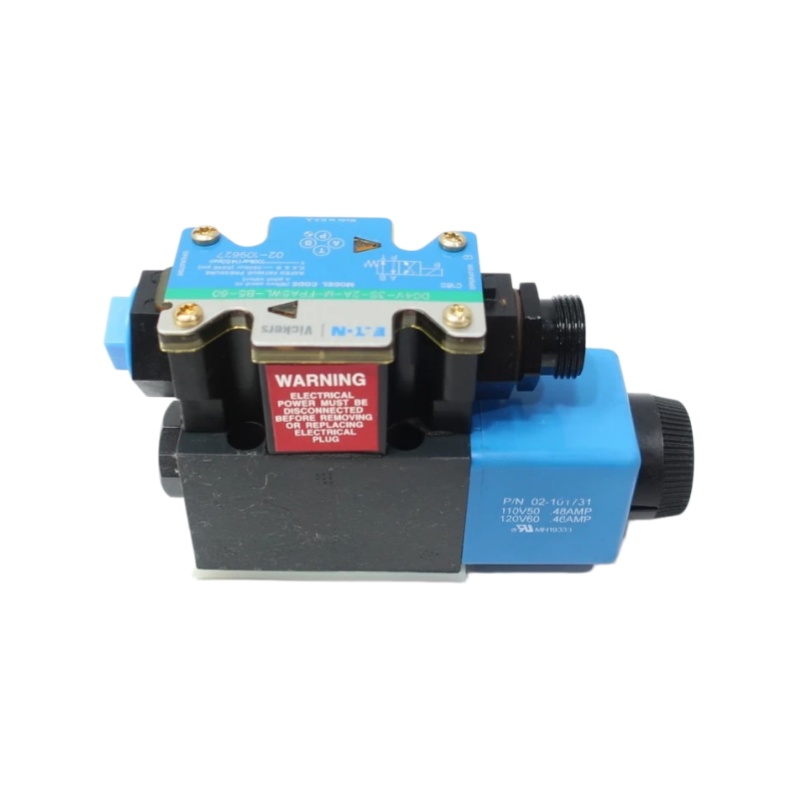

Eaton DG4V-3S-2A-M-FPA5WL-B5-60 Hydraulic Directional Control Valve
Description:
The Eaton DG4V-3S-2A-M-FPA5WL-B5-60 is a high-performance, solenoid-operated hydraulic directional control valve designed for precise control of hydraulic fluid flow in industrial and mobile hydraulic systems. Built on the proven DG4V-3 series platform, this CETOP 3 / NG6 valve offers reliable switching performance, fast response, high pressure capability, and long service life. It is widely used in machine tools, injection molding machines, construction equipment, hydraulic power units, and other demanding hydraulic applications.
share:
Eaton DG4V-3S-2A-M-FPA5WL-B5-60 Hydraulic Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Name | Eaton DG4V-3S-2A-M-FPA5WL-B5-60 |
| Manufacturer | Eaton Vickers |
| Product Type | Hydraulic Directional Control Valve |
| Valve Type | Solenoid Operated Directional Valve |
| Series | DG4V-3S |
| Size | NG6 / CETOP 3 / D03 |
| Flow Direction | 4-Way |
| Spool Position | 3-Position |
| Spool Code | 2A |
| Actuation | Solenoid |
| Spring Arrangement | Spring Offset |
| Mounting Type | Subplate / Manifold Mount |
| Maximum Operating Pressure | 350 bar (5075 psi) |
| Maximum Flow Rate | 80 L/min (≈21 GPM) |
| Tank Port Pressure | 100 bar |
| Coil Voltage | 110V AC 50Hz / 120V AC 60Hz |
| Electrical Connection | 5-Pin Connector with 1/2″ NPT Wiring Housing |
| Seal Material | Buna-N (Nitrile) |
| Fluid Type | Mineral Hydraulic Oil |
| Operating Temperature | -20°C to +70°C (depending on fluid) |
| Installation Standard | ISO 4401-03 / CETOP 3 / NFPA D03 |
| Typical Applications | Industrial machinery, hydraulic power units, presses, machine tools, mobile equipment |
