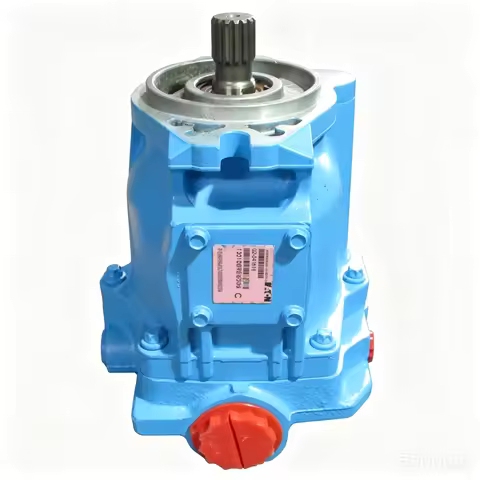

Eaton Vickers PVE19 Variable Piston Pump
Description:
The Eaton Vickers PVE19 is an inline variable displacement axial piston pump designed for open-circuit hydraulic systems. It features pressure and flow compensator controls that automatically adjust pump output according to system demand, helping improve efficiency and reduce energy consumption. With its lightweight aluminum housing, high-pressure capability, and reliable performance, the PVE19 is widely used in construction equipment, agricultural machinery, industrial hydraulic systems, and mobile equipment applications.
share:
Eaton Vickers PVE19 Variable Piston Pump
| Parameter | Specification |
|---|---|
| Product Name | Eaton Vickers PVE19 Variable Piston Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Circuit Type | Open Circuit |
| Series | PVE “E” Series |
| Displacement | 41 cm³/rev (2.50 in³/rev) |
| Rated Input Speed | 2400 RPM |
| Maximum Operating Pressure | 210 bar (3000 psi) |
| Maximum Speed (Destroked) | Up to 3000 RPM |
| Control Options | Pressure Compensator, Load Sense, Flow Control |
| Housing Material | Die-Cast Aluminum |
| Mounting Position | Horizontal Recommended |
| Rotation | Right-Hand / Left-Hand Available |
| Shaft Options | SAE B Keyed, SAE Spline |
| Mounting Flange | SAE B 2-Bolt |
| Operating Medium | Mineral Hydraulic Oil |
| Application | Mobile & Industrial Hydraulic Systems |
| Manufacturer | Eaton Vickers |
