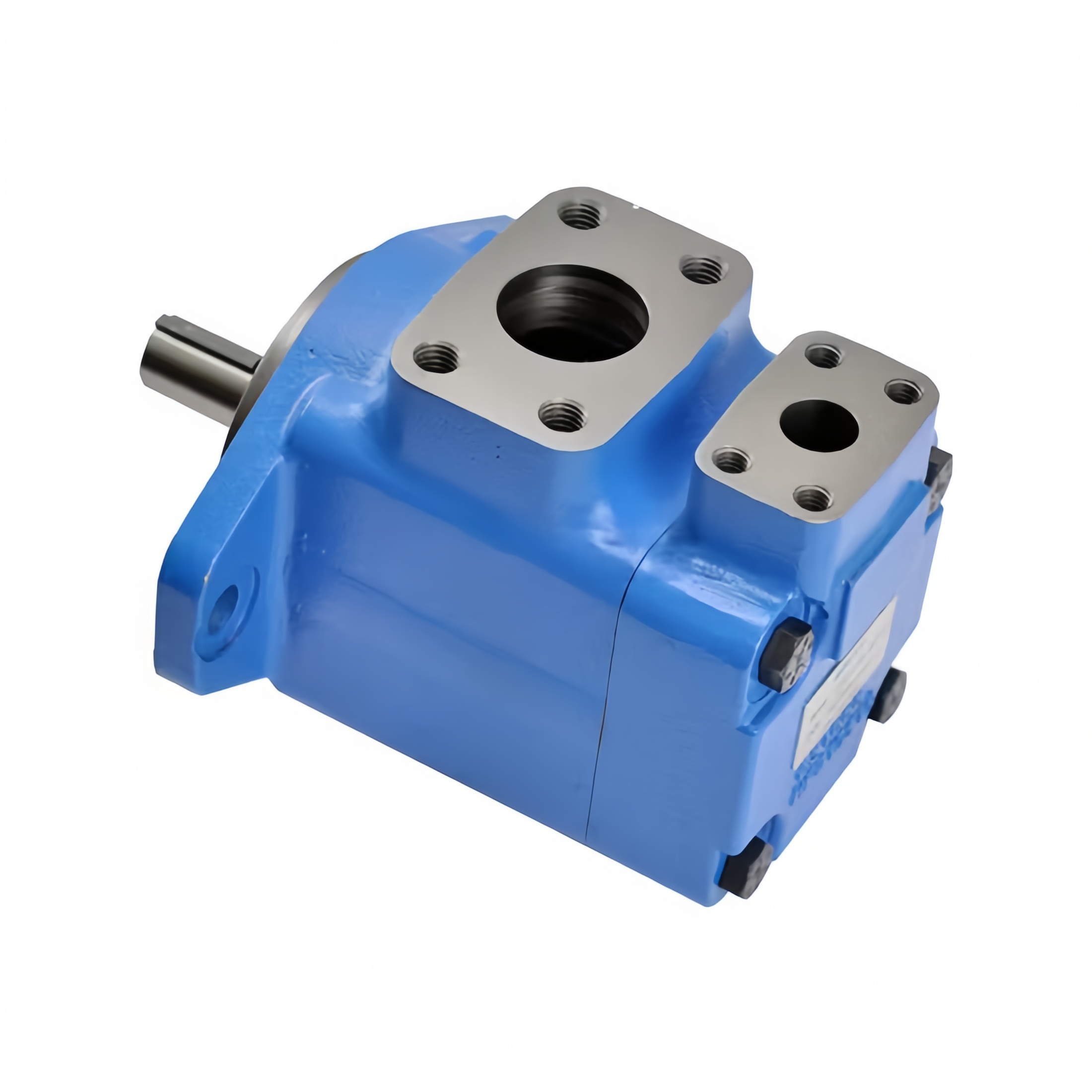

Eaton Vickers Series Hydraulic Oil Vane Pump
Description:
The Eaton Vickers Series Hydraulic Oil Vane Pump is a high-performance hydraulic pump designed for industrial and mobile applications. With its reliable operation, low noise, and compact design, it delivers efficient hydraulic power for a wide range of machinery. Ideal for use in construction, manufacturing, and agricultural equipment, this vane pump ensures consistent flow and pressure under demanding conditions.
share:
Eaton Vickers Series Hydraulic Oil Vane Pump
| Parameter | Specification |
|---|---|
| Model Number | Vickers Series Vane Pump |
| Type | Hydraulic Oil Vane Pump |
| Maximum Pressure | 250 bar (3625 psi) |
| Displacement Range | 2–63 cc/rev |
| Flow Rate | 10–200 L/min |
| Speed Range | 500–3000 rpm |
| Operating Temperature | -20°C to 80°C |
| Port Size | SAE B, SAE C, BSP options |
| Noise Level | ≤75 dB |
| Mounting | Flange / Foot Mounting |
| Shaft Type | Keyed or Splined |
| Material | High-grade alloy steel & aluminum |
| Weight | 12–30 kg depending on model |
| Applications | Industrial machinery, mobile equipment, agriculture, construction |
