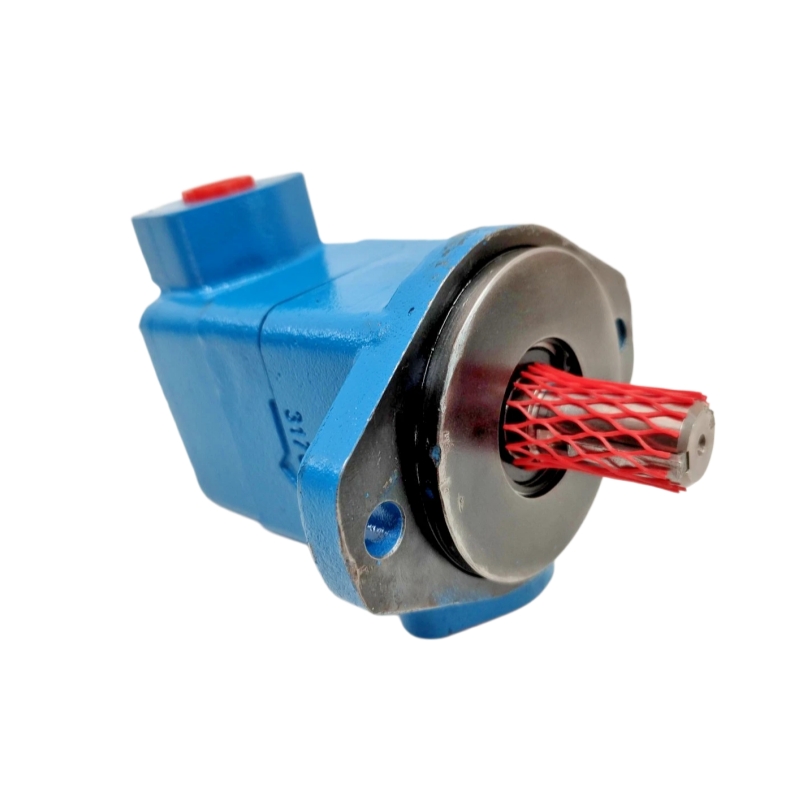

Eaton Vickers V10 Vane Pump
Description:
share:
Eaton Vickers V10 Vane Pump
| Parameter | Specification |
|---|---|
| Pump Type | Fixed Displacement Vane Pump |
| Series | V10 |
| Displacement Range | 1.3 – 11.6 cm³/rev |
| Maximum Operating Pressure | Up to 172 bar (2500 psi) |
| Maximum Speed | 3600 rpm |
| Recommended Speed Range | 600 – 3000 rpm |
| Flow Rate | Up to 30 L/min (depending on model) |
| Mounting Type | Flange or Foot Mounted |
| Shaft Type | Keyed / Splined |
| Rotation | Clockwise / Counterclockwise |
| Fluid Type | Mineral oil-based hydraulic fluids |
| Operating Temperature | -20°C to +80°C |
| Noise Level | Low-noise design |
| Application | Industrial & Mobile Hydraulic Systems |
