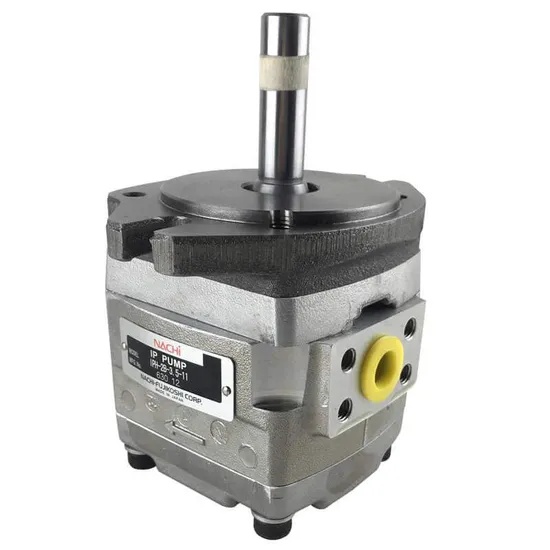

IPH-2B-3.5-11 Hydraulic Oil Pump Servo Gear Pump
Description:
The NACHI IPH-2B-3.5-11 is an IPH Series internal gear pump designed for reliable and efficient hydraulic oil circulation in industrial hydraulic systems. It features a compact construction, flange mounting, and an internal gear design that helps reduce pressure pulsation and operating noise.
share:
IPH-2B-3.5-11 Hydraulic Oil Pump Servo Gear Pump
| Item | Specification |
|---|---|
| Product Name | Hydraulic Internal Gear Pump |
| Brand | NACHI |
| Model | IPH 2B 3.5 11 |
| Series | IPH Series |
| Pump Type | Internal Gear Pump |
| Pump Size | IPH 2B |
| Pump Configuration | Single Pump |
| Displacement | 3.6 cm3 per revolution |
| Rated Pressure | 25 MPa |
| Maximum Operating Pressure | 30 MPa |
| Minimum Speed | 600 rpm |
| Maximum Speed | 2000 rpm |
| Mounting Method | Flange Mount |
| Rotation Direction | Right Hand Rotation |
| Hydraulic Fluid | General Mineral Hydraulic Oil |
| Delivery Port Diameter | 8.9 mm |
| Weight | Approximately 2.4 kg |
| Design Number | 11 |
| Construction | Cast Iron |
| Application | Industrial Hydraulic Systems |
