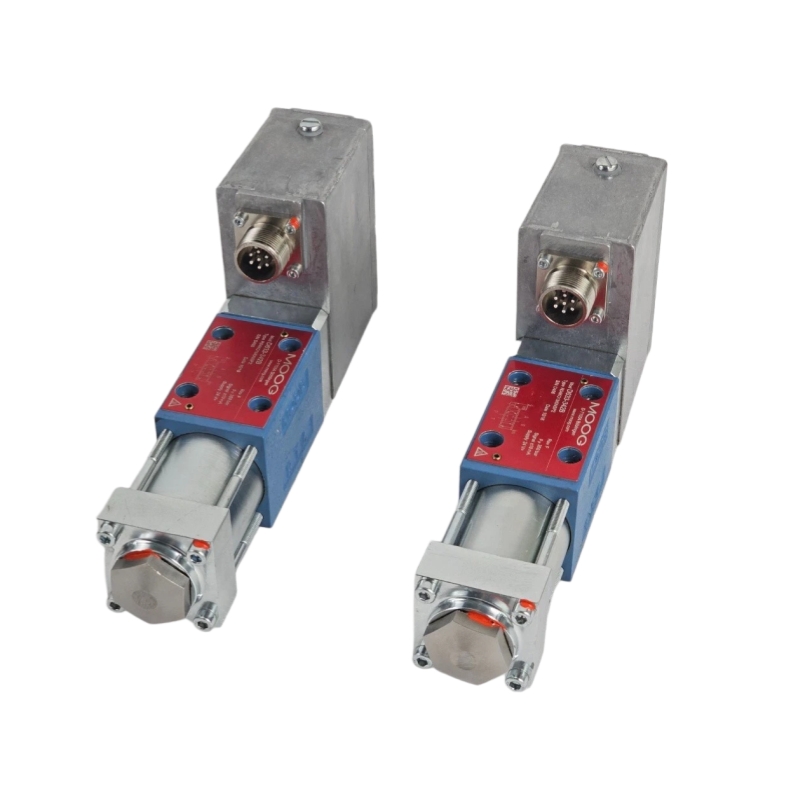

MOOG D633-342B Direct Drive Valve
Description:
share:
MOOG D633-342B Direct Drive Valve
| Parameter | Specification |
|---|---|
| Valve Type | Direct Drive Servo Valve (DDV) |
| Series | D633 |
| Model | D633-342B |
| Control Type | Analog control with integrated electronics |
| Drive Mechanism | Permanent magnet linear force motor |
| Mounting Standard | ISO 4401 Size 03 |
| Rated Flow | 5–100 L/min (depending on spool configuration) |
| Maximum Flow | Up to 75 L/min |
| Operating Pressure | Up to 350 bar (5000 psi) |
| Response Time | ≤ 12 ms (0–100% stroke) |
| Electrical Supply | Typically 24 VDC |
| Command Signal | ±10 V analog |
| Feedback Signal | Integrated spool position feedback (LVDT) |
| Valve Design | 1-stage, spool and bushing |
| Medium | Hydraulic oil |
| Installation | Subplate mounting |
