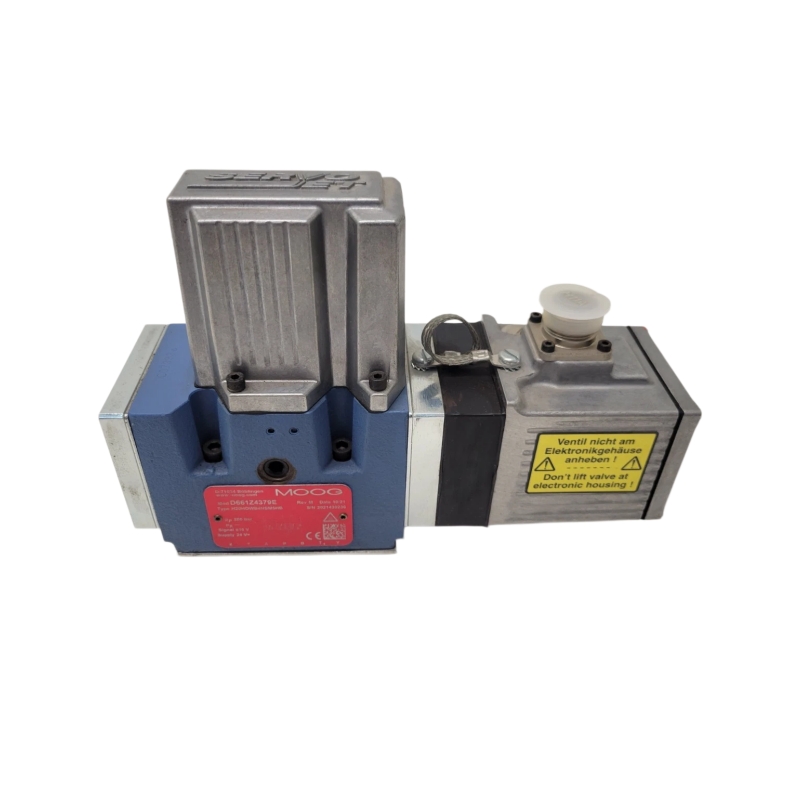

MOOG D661Z4379E Servo Valve
Description:
share:
MOOG D661Z4379E Servo Valve
| Parameter | Specification |
|---|---|
| Model | D661Z4379E |
| Valve Type | Electrohydraulic Servo Valve |
| Rated Flow | 40–80 L/min (depending on config) |
| Rated Pressure | Up to 315 bar |
| Control Signal | ±10 V / 4–20 mA |
| Response Time | ≤10 ms |
| Hysteresis | <1% |
| Linearity | <1% |
| Coil Resistance | Approx. 80–120 Ω |
| Operating Temperature | -20°C to +80°C |
| Fluid Compatibility | Mineral oil (ISO VG 32–68 recommended) |
| Mounting Type | Subplate mounting (ISO standard) |
| Weight | Approx. 2–3 kg |
