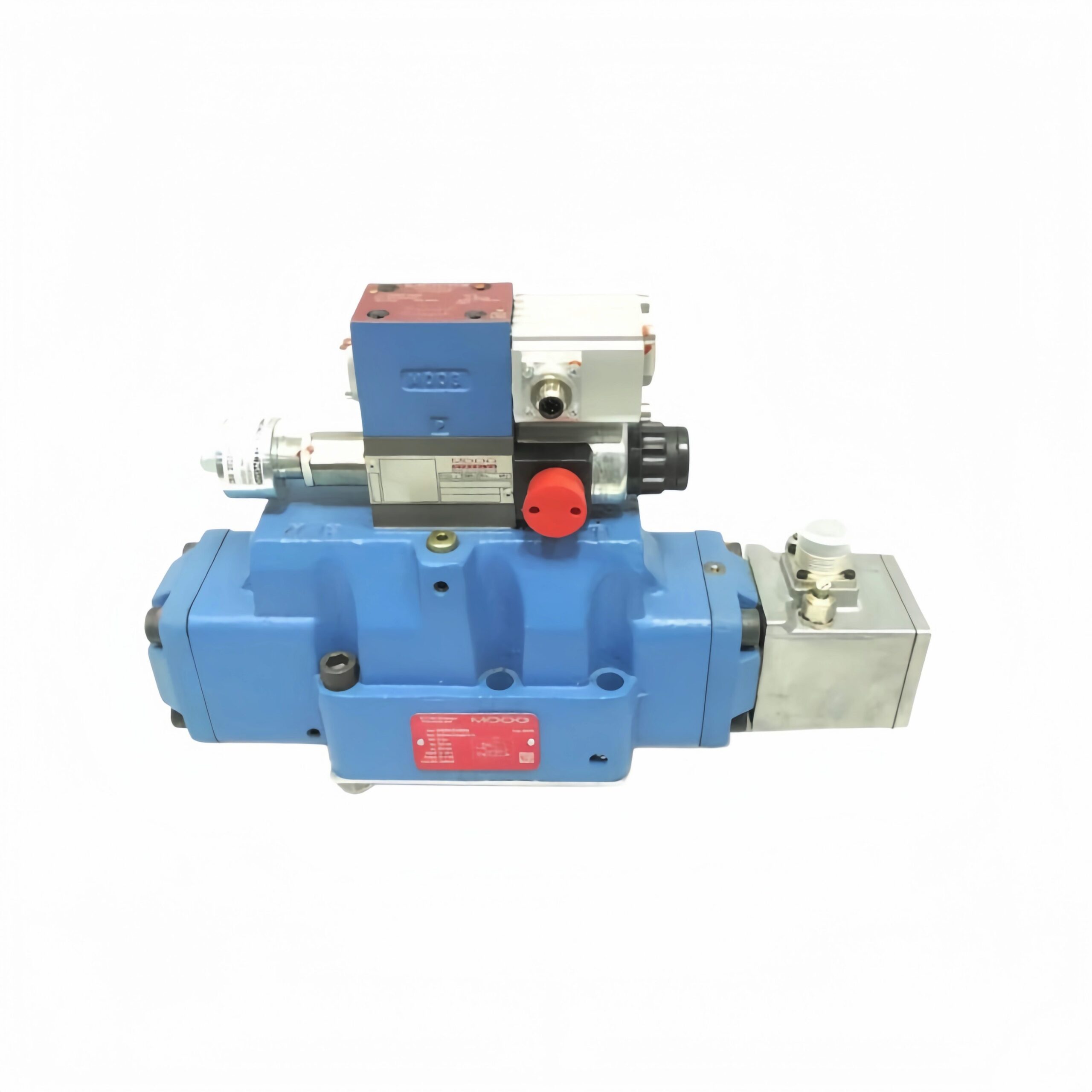

Moog D684Z4826 Hydraulic Directional Control Valve
Description:
The Moog D684Z4826 Hydraulic Directional Control Valve is a high-performance electro-hydraulic proportional valve designed for precise control of flow and direction in demanding industrial hydraulic systems. It is widely used in servo systems, heavy machinery, and automation equipment where accuracy, stability, and fast response are required. The valve operates on a 24V DC control signal and is part of Moog’s D684 series known for high reliability and dynamic performance.
share:
Moog D684Z4826 Hydraulic Directional Control Valve
| Item | Specification |
|---|---|
| Model | Moog D684Z4826 |
| Series | D684 Proportional Directional Control Valve |
| Valve Type | Electro-hydraulic proportional directional valve |
| Control Method | Solenoid / proportional control |
| Supply Voltage | 24 V DC |
| Nominal Size | NG25 / D08 (typical for D684 series) |
| Max Operating Pressure | Up to 350 bar (series typical) |
| Max Flow Rate | Up to 550 L/min (depending on configuration) |
| Installation Type | Subplate / manifold mounting |
| Hydraulic Medium | Mineral oil (ISO VG 32–68 recommended) |
| Response Type | High dynamic response servo-proportional |
| Application | Industrial hydraulics, servo systems, automation |
| Operating Temperature | -20°C to +80°C (typical industrial range) |
| Weight | Approx. 20–22 kg (series dependent) |
