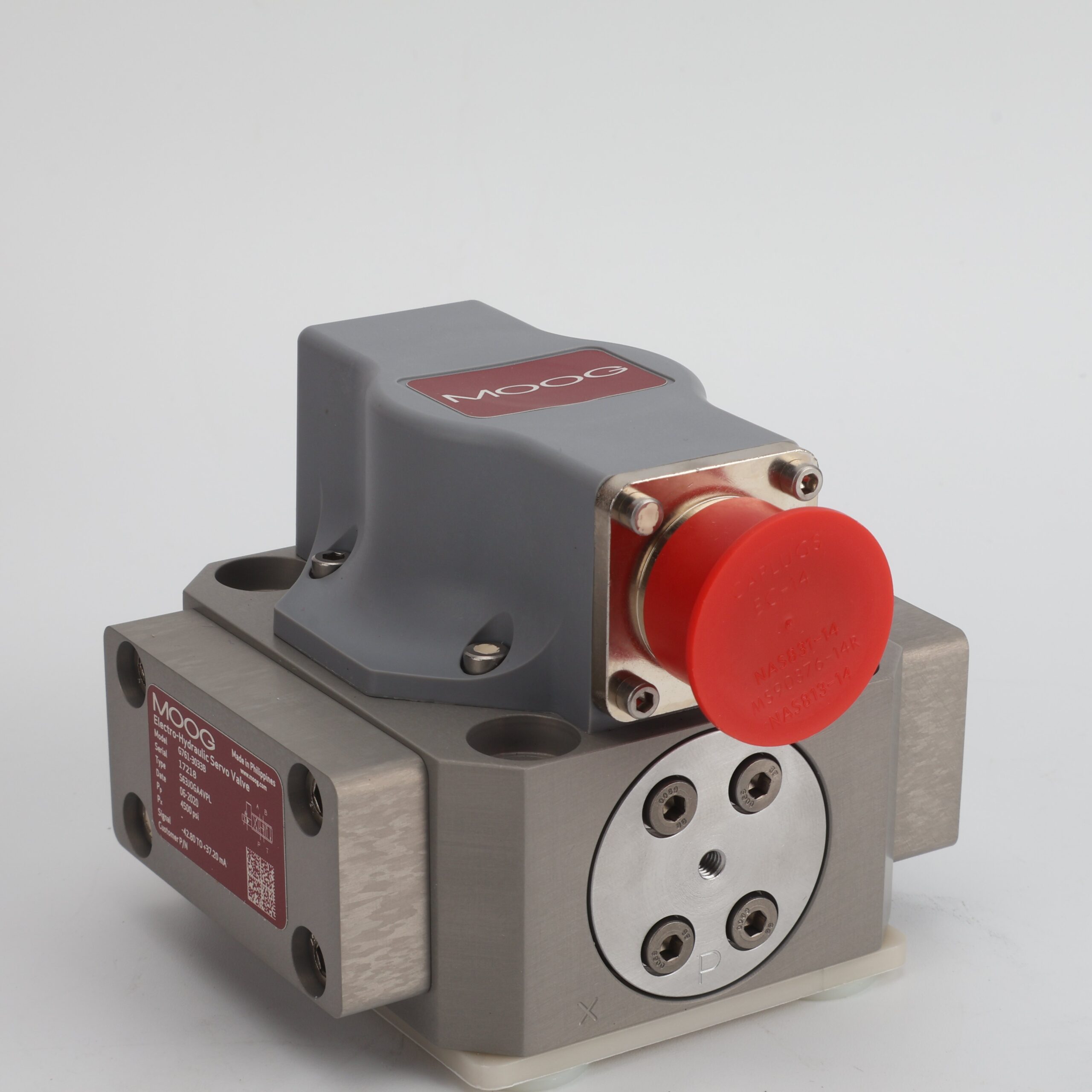

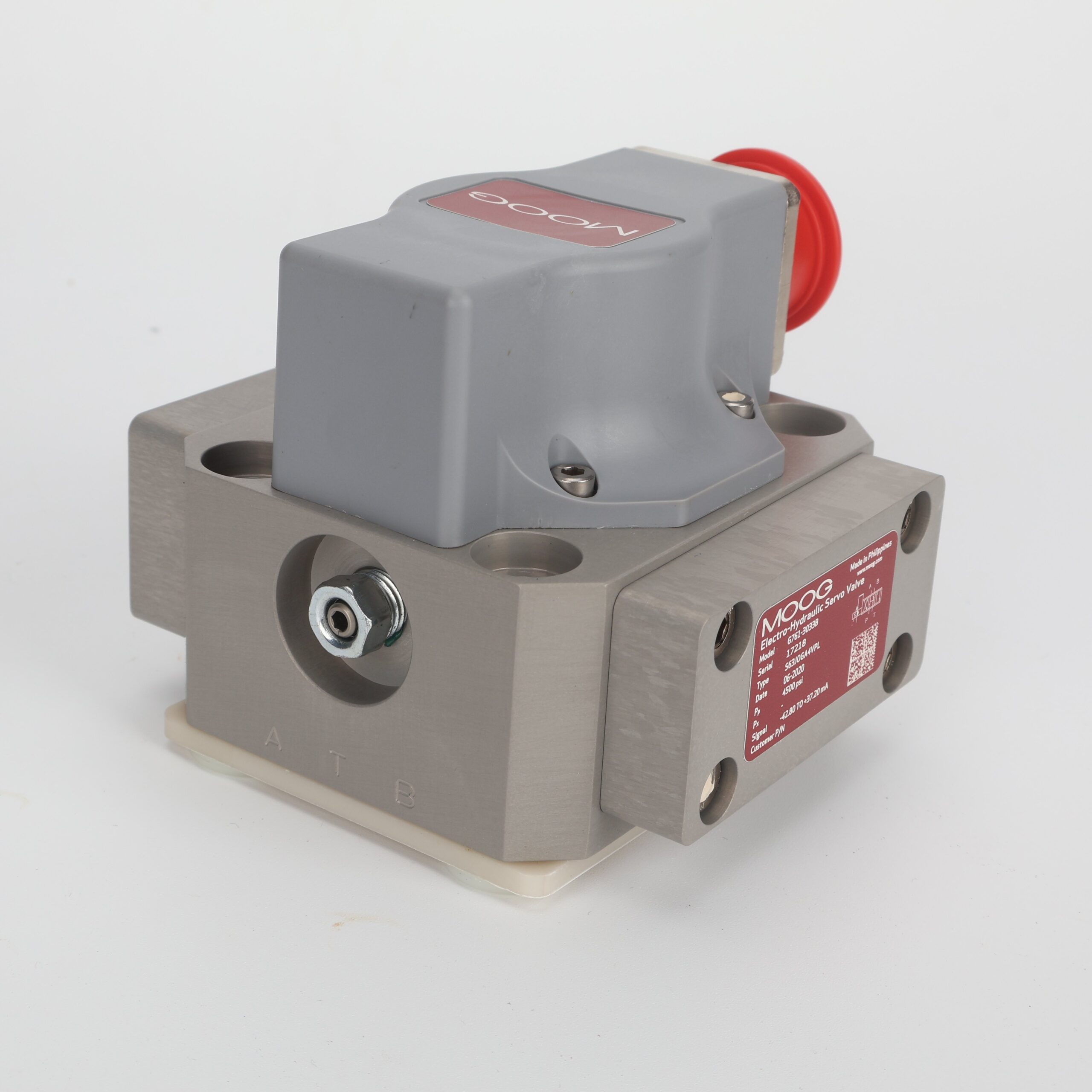

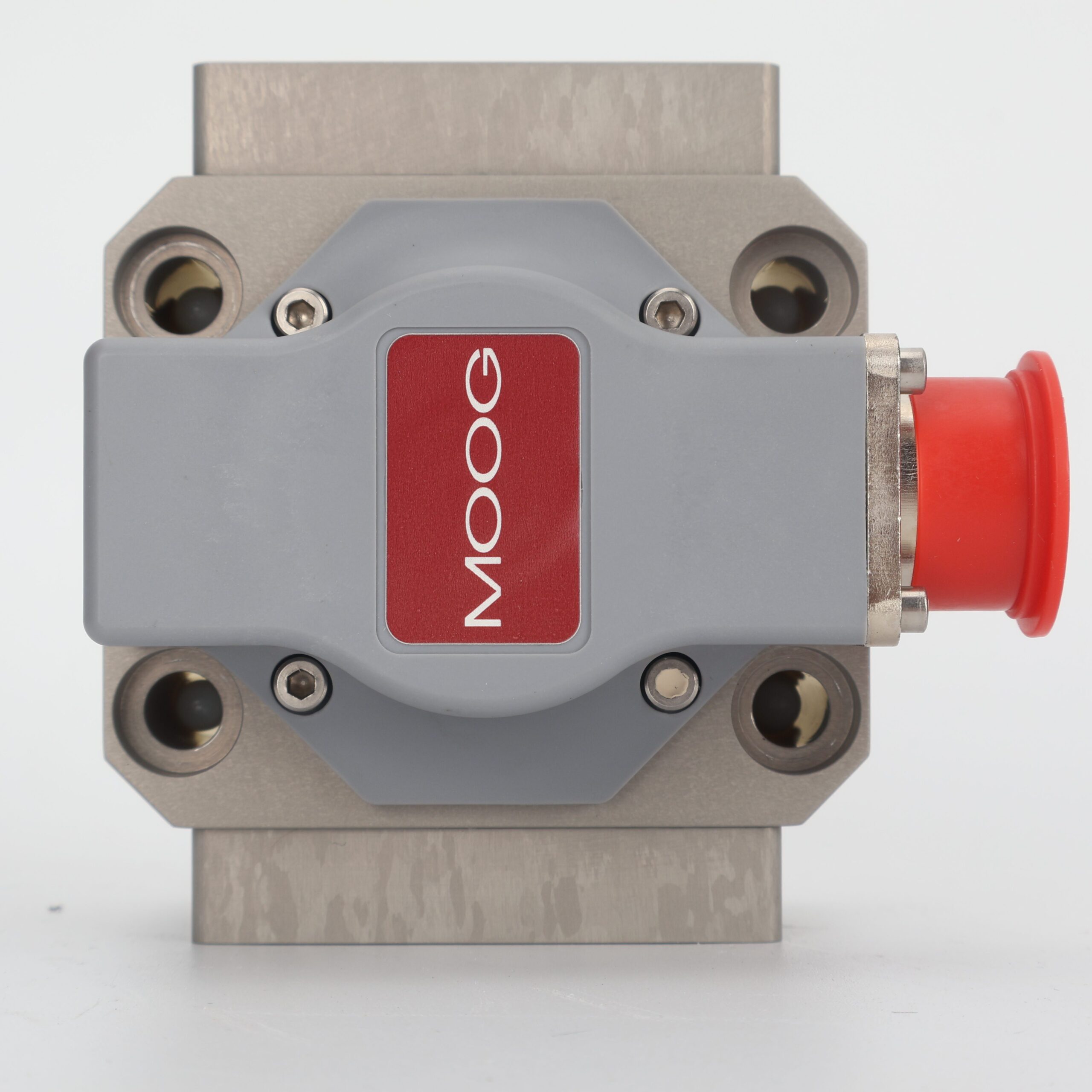

Moog G761‑3033B Servo Valve
Description:
share:
YS hydraulic is a leading supplier of hydraulic pumps, valves, and motors, specializing in high-performance solutions for industrial and mobile applications. Our product range includes top brands like Bosch Rexroth, Parker, Moog, and more. With a strong focus on quality and reliability, we provide customers with durable hydraulic systems designed to meet the most demanding requirements. In addition to product supply, we offer comprehensive repair and maintenance services, ensuring optimal performance and minimizing downtime. Our commitment to innovation and customer satisfaction makes us a trusted partner for businesses worldwide.
Key advantages of the Moog G761‑3033B Servo Valve
-
Two-stage design (pilot + main spool) enables high dynamic response and excellent stability.
-
Rated flows in the series range from approx. 4 to 63 L/min (1 to 16.5 gpm) at a 35 bar (500 psi) pressure drop per spool land.
-
Maximum operating pressure for ports P, A, B, X up to ~315 bar (~4,500 psi) in aluminium body; steel versions up to ~350 bar (~5,000 psi).
-
Step response time (0-100% stroke) typical: <16 ms (standard response) down to <4 ms for very high response versions.
-
Rugged design with hardened bushing and spool, feedback wire mechanism, and optional fail-safe or intrinsically safe configurations for hazardous environments.
