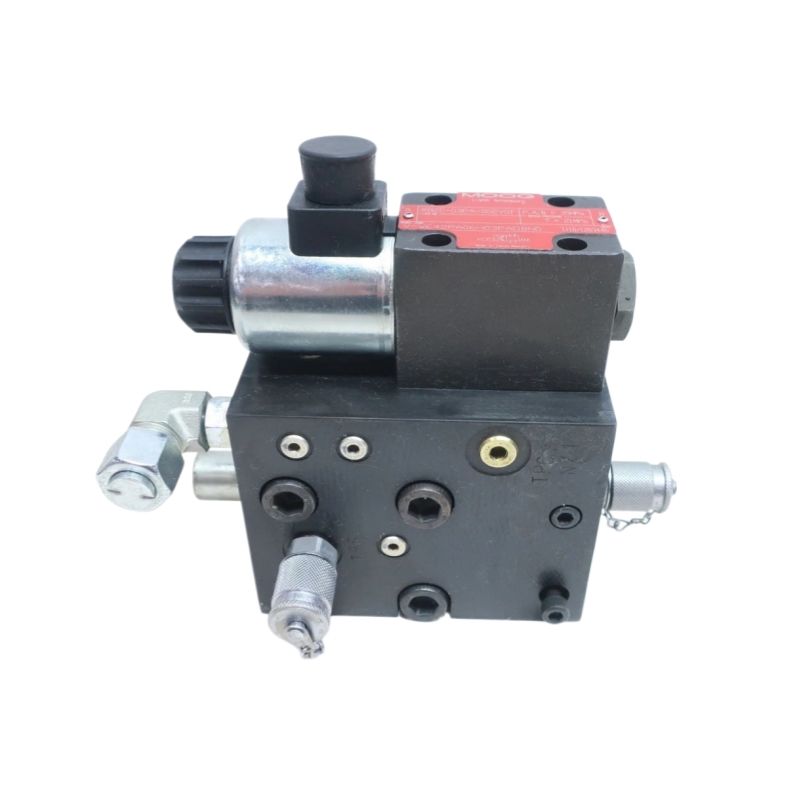

Moog V-WE42PA06H03PAOBN0 Hydraulic Directional Control Valve
Description:
The Moog V-WE42PA06H03PAOBN0 Hydraulic Directional Control Valve is a high-performance CETOP 3 / NG6 hydraulic directional control valve designed for reliable flow switching and precise hydraulic control in industrial systems. It belongs to the Moog X820 directional valve series and features compact construction, high operating pressure capability, and dependable solenoid actuation for demanding hydraulic applications.
share:
Moog V-WE42PA06H03PAOBN0 Hydraulic Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Model | V-WE42PA06H03PAOBN0 |
| Valve Type | Hydraulic Directional Control Valve |
| Series | Moog X820 Series |
| Mounting Standard | ISO 4401-03 / CETOP 3 / NG6 |
| Valve Configuration | 4/2 Way Directional Valve |
| Spool Code | 03P |
| Actuation Type | Solenoid Operated |
| Solenoid Position | A-side Solenoid |
| Maximum Operating Pressure | Up to 350 bar |
| Hydraulic Medium | Mineral Oil / Hydraulic Oil |
| Electrical Connector | DIN 43650 |
| Installation Type | Subplate Mounting |
| Seal Material | NBR Standard |
| Flow Direction Control | P → A/B, A/B → T |
| Application | Industrial Hydraulic Systems |
| Typical Industries | Steel, Plastic, Press Machinery, Automation |
