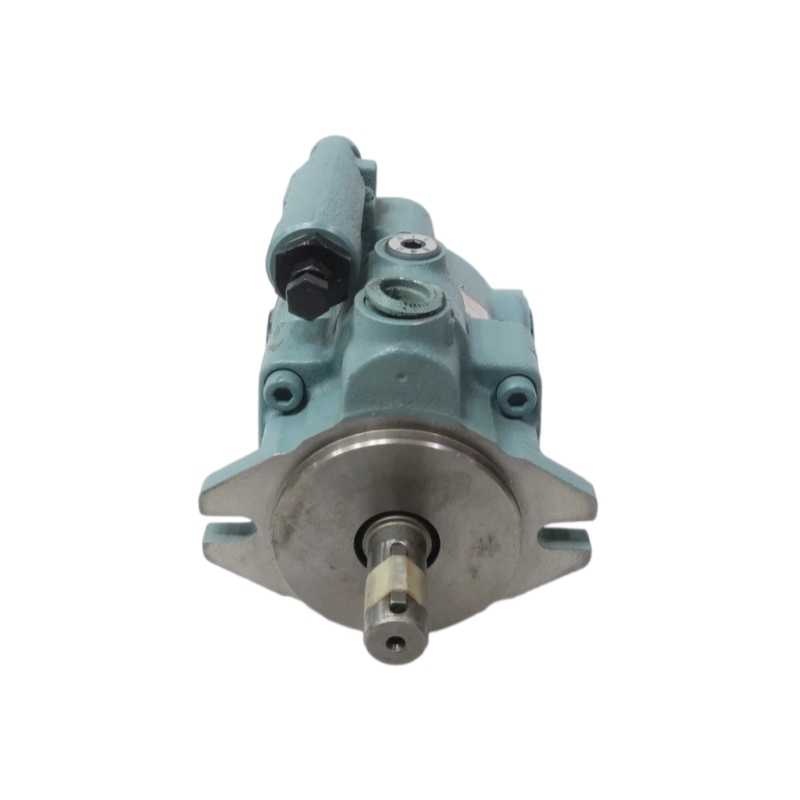

Nachi PVS-0B-8N3-E30 Hydraulic Piston Pump
Description:
The Nachi PVS-0B-8N3-E30 Hydraulic Piston Pump is a high-precision variable displacement axial piston pump designed for industrial hydraulic systems requiring stable pressure control, high efficiency, and low noise operation. It is widely used in machine tools, molding equipment, and industrial automation systems where reliable hydraulic performance is essential. The PVS series is known for compact design, smooth operation, and long service life.
share:
Nachi PVS-0B-8N3-E30 Hydraulic Piston Pump
| Item | Specification |
|---|---|
| Model | Nachi PVS-0B-8N3-E30 |
| Type | Axial Piston Pump |
| Displacement | Variable displacement (model-dependent) |
| Control Type | Pressure compensation / load sensing (varies by configuration) |
| Maximum Operating Pressure | Up to approx. 21–28 MPa (system dependent) |
| Rated Pressure | Approx. 16–21 MPa |
| Speed Range | ~600 – 3000 rpm |
| Flow Direction | Bi-directional rotation compatible (depending on setup) |
| Fluid Type | Mineral-based hydraulic oil |
| Viscosity Range | 15–100 mm²/s (recommended) |
| Temperature Range | -20°C to 80°C |
| Mounting Type | Flange mounting |
| Application | Industrial hydraulic systems |
| Structure | Swash plate axial piston design |
| Efficiency | High volumetric & mechanical efficiency |
| Noise Level | Low-noise design |
