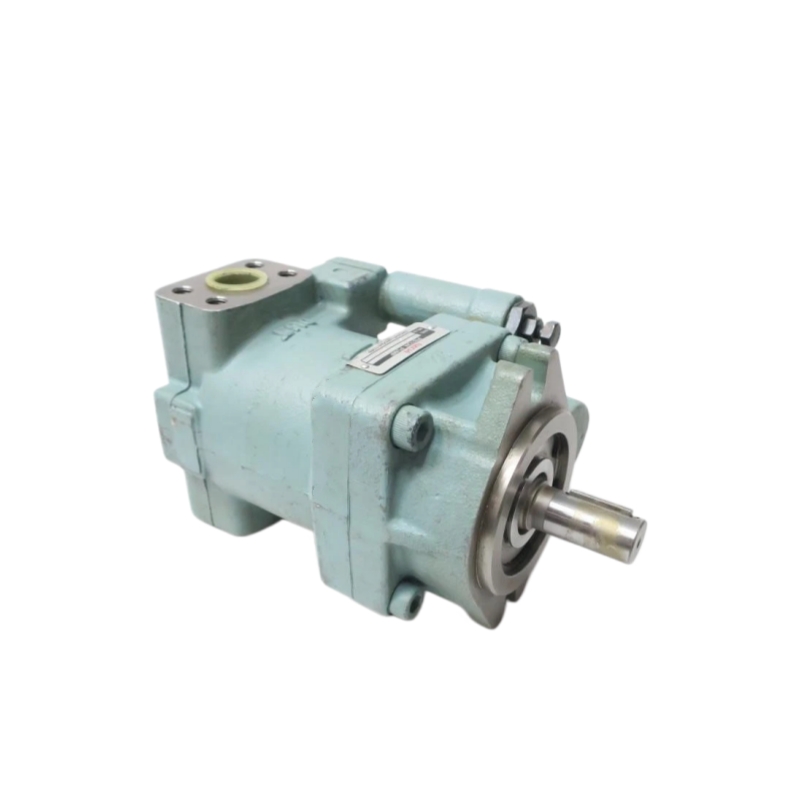

Nachi PVS-1B-16N1-E13 Hydraulic Piston Pump
Description:
share:
Nachi PVS-1B-16N1-E13 Hydraulic Piston Pump
| Parameter | Specification |
|---|---|
| Model | Nachi PVS-1B-16N1-E13 |
| Type | Variable displacement axial piston pump |
| Displacement | ~16 cc/rev (typical for 16 series) |
| Rated Pressure | Up to 21 MPa (210 bar) |
| Maximum Pressure | Up to 28–31.5 MPa (system dependent) |
| Control Type | Pressure / flow control (servo or mechanical control options) |
| Rotation | Clockwise (standard) |
| Shaft Type | Keyed shaft (varies by sub-model) |
| Mounting | Flange mounting |
| Fluid | Hydraulic oil ISO VG 32–68 |
| Temperature Range | -20°C to +80°C |
| Efficiency | High volumetric & mechanical efficiency |
| Application | Industrial hydraulic systems |
