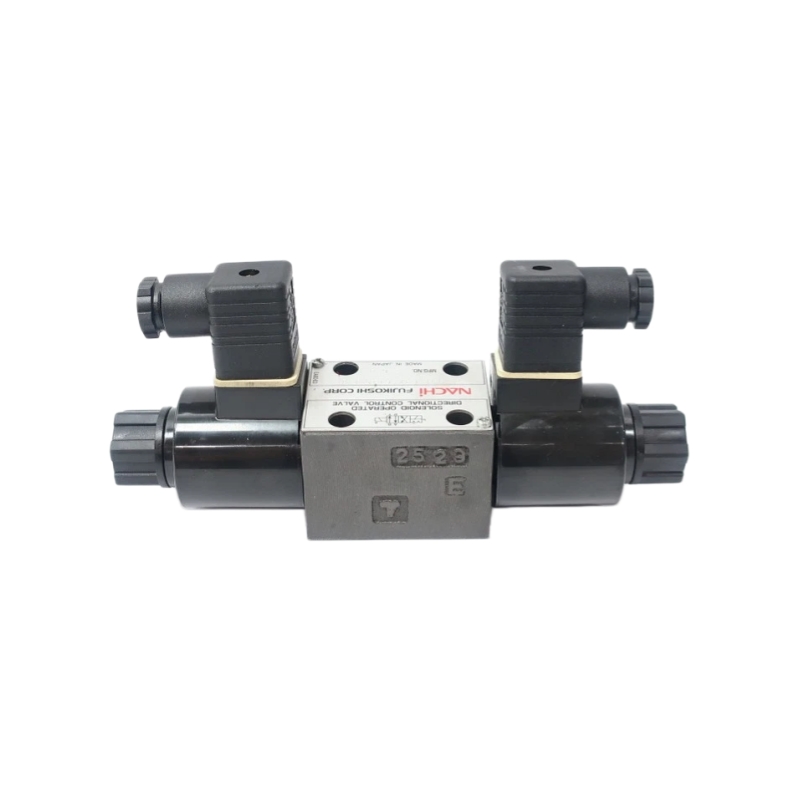

Nachi SA-G01-E3X-C115-E30 Solenoid Operated Directional Control Valve
Description:
The Nachi SA-G01-E3X-C115-E30 is a wet-type solenoid operated directional control valve designed for stable hydraulic flow switching in industrial hydraulic systems. Featuring low noise operation, long service life, and reliable spool shifting, this valve is widely used in hydraulic power units, machine tools, injection molding machines, and industrial automation equipment. Its compact NG6/D03 mounting size allows easy installation and compatibility with modular hydraulic systems.
share:
Nachi SA-G01-E3X-C115-E30 Solenoid Operated Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Model | SA-G01-E3X-C115-E30 |
| Brand | Nachi |
| Product Type | Solenoid Operated Directional Control Valve |
| Valve Series | SA Series |
| Valve Type | Wet Type Double Solenoid Valve |
| Mounting Type | Gasket Mounting |
| Nominal Size | G01 / NG6 / D03 |
| Port Configuration | 4-Way, 3-Position |
| Spool Type | E3X |
| Voltage | AC 110V / 115V |
| Frequency | 50/60 Hz |
| Max Operating Pressure | 35 MPa (5075 psi) |
| Permissible Back Pressure | 21 MPa |
| Max Flow Rate | Up to 100 L/min |
| Electrical Connection | DIN Connector |
| Body Material | Cast Iron |
| Switching Frequency | Up to 300 cycles/min |
| Mounting Standard | ISO 4401-03 |
| Approx. Weight | 1.8 kg |
| Features | Low noise, long life, shock resistance, compact structure |
| Typical Applications | Industrial machinery, hydraulic systems, automation equipment |
