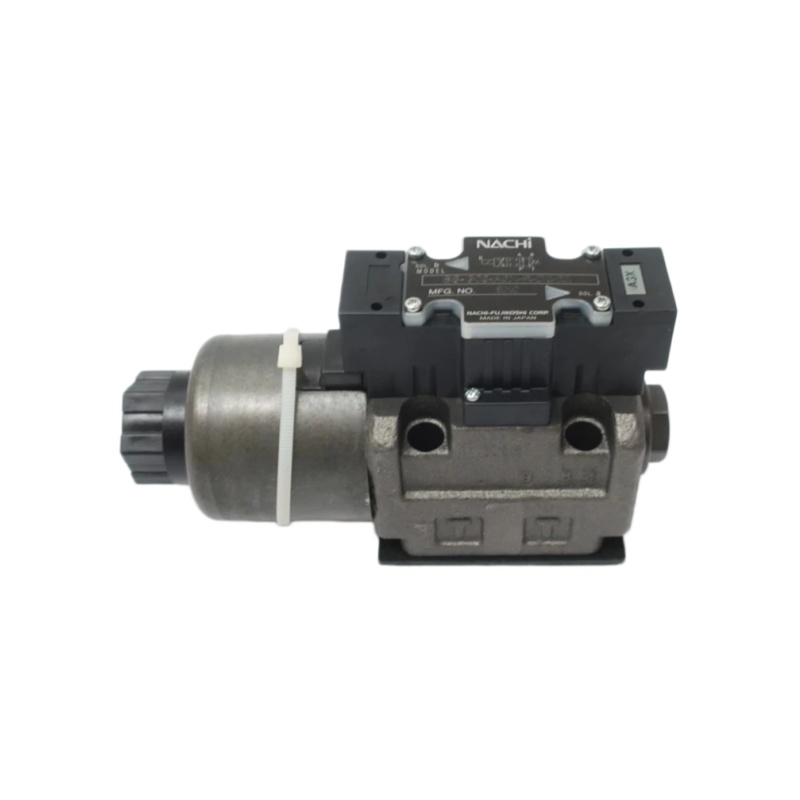

Nachi SS-G03-A3X-R-D2-22 Hydraulic Directional Control Valve
Description:
The Nachi SS-G03-A3X-R-D2-22 Hydraulic Directional Control Valve is a wet-type solenoid operated directional valve designed for reliable flow control in industrial hydraulic systems. Featuring a compact G03 (NG10/D05) mounting size, 24V DC solenoid, and durable wet-armature construction, it delivers smooth switching, low operating noise, long service life, and stable performance under high-pressure applications. It is widely used in machine tools, injection molding machines, hydraulic presses, automation equipment, and industrial power units.
share:
Nachi SS-G03-A3X-R-D2-22 Hydraulic Directional Control Valve
| Item | Specification |
|---|---|
| Product Name | Nachi SS-G03-A3X-R-D2-22 Hydraulic Directional Control Valve |
| Manufacturer | Nachi |
| Series | SS Series |
| Valve Type | Wet-Type Solenoid Operated Directional Control Valve |
| Model | SS-G03-A3X-R-D2-22 |
| Mounting Type | Gasket Mount (Subplate) |
| Mounting Standard | G03 / NG10 / D05 |
| Valve Function | 4-Way, 3-Position |
| Spool Type | A3X |
| Solenoid Type | Wet Armature |
| Coil Voltage | 24 VDC (D2) |
| Indicator Light | Yes (R) |
| Maximum Operating Pressure | Up to 35 MPa (350 bar / 5075 psi)* |
| Maximum Flow Rate | Up to 120 L/min (31.7 GPM)* |
| Electrical Connection | Terminal Box |
| Protection Class | IP64 (Typical SS Series) |
| Switching | Low Noise, Long Service Life |
| Typical Applications | Hydraulic Power Units, Machine Tools, Presses, Automation Equipment |
| Design Code | 22 |
