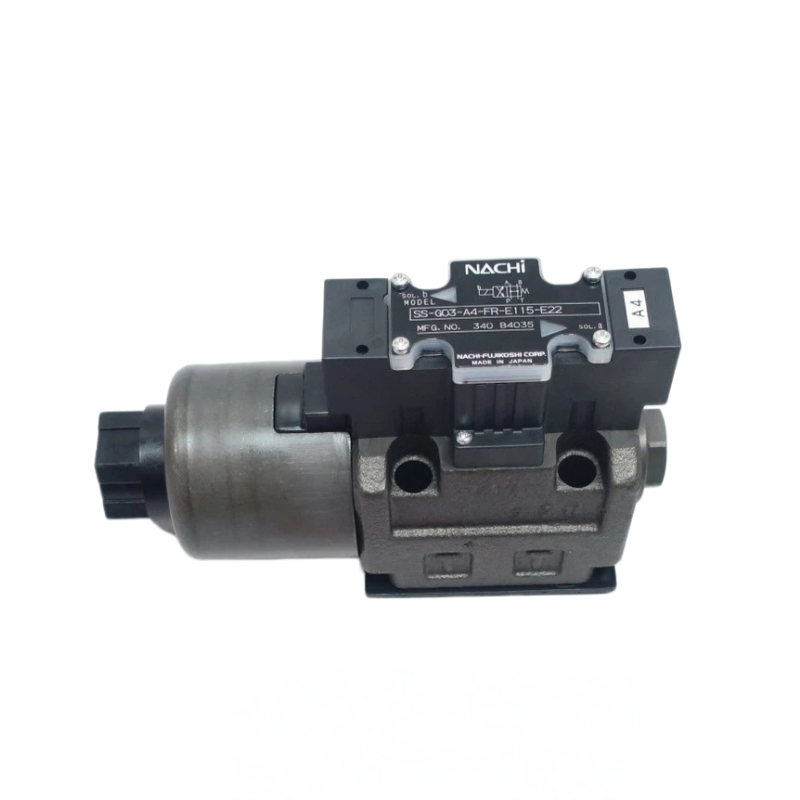

Nachi SS-G03-A4-FR-E115-E22 Hydraulic Directional Control Valve
Description:
The Nachi SS-G03-A4-FR-E115-E22 Hydraulic Directional Control Valve is a high-performance solenoid-operated directional valve designed for precise hydraulic flow control in industrial and mobile hydraulic systems. Manufactured for reliable switching performance, low pressure loss, and long service life, this valve is widely used in hydraulic power units, machine tools, injection molding machines, and automated equipment. Its compact NG6/CETOP 03 design allows easy installation and stable operation under continuous-duty applications.
share:
Nachi SS-G03-A4-FR-E115-E22 Hydraulic Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Name | Nachi SS-G03-A4-FR-E115-E22 |
| Product Type | Hydraulic Directional Control Valve |
| Valve Type | Solenoid Operated Directional Valve |
| Mounting Type | Subplate Mounting |
| Size | G03 / NG6 / CETOP 03 |
| Port Standard | ISO 4401-03 |
| Control Type | 4-Way, 3-Position |
| Spool Type | A4 |
| Rated Flow | Up to 60 L/min |
| Maximum Operating Pressure | 31.5 MPa |
| Fluid Type | Hydraulic Oil |
| Voltage | AC 115V |
| Coil Type | Wet Type Solenoid |
| Response Characteristics | Fast Switching |
| Operating Temperature | -15°C to +70°C |
| Sealing Material | Standard NBR Seals |
| Installation Position | Optional |
| Application | Industrial Hydraulic Systems |
| Brand | Nachi |
| Model Code | SS-G03-A4-FR-E115-E22 |
