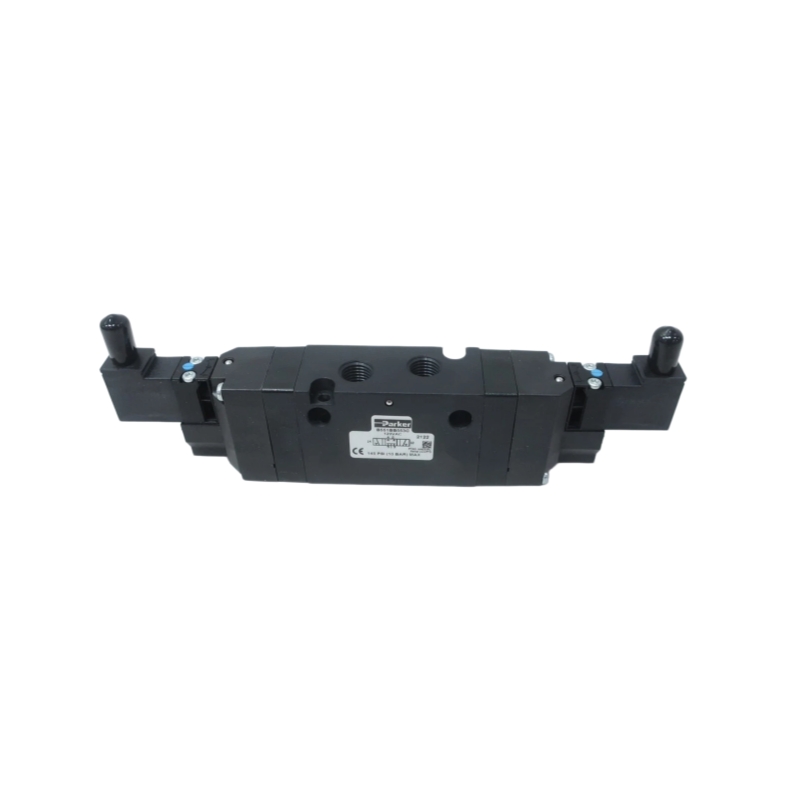

Parker B551BB553C Pneumatic Solenoid Valve

Parker B551BB553C Pneumatic Solenoid Valve

Description:

The Parker B551BB553C Pneumatic Solenoid Valve is a high-performance pneumatic directional control valve designed for industrial automation systems, packaging machinery, conveying equipment, and production lines. It belongs to Parker’s reliable B Series valves and features a double solenoid, 4-way 3-position configuration with all ports blocked in the center position for stable and precise airflow control. The valve offers fast response, durable aluminum body construction, low leakage performance, and long service life under demanding industrial environments.

share:

Parker B551BB553C Pneumatic Solenoid Valve

Parameter Specification
Product Model Parker B551BB553C
Valve Series B Series
Valve Type Pneumatic Solenoid Valve
Function 4-Way / 3-Position
Actuation Type Double Solenoid
Center Condition All Ports Blocked
Port Size 1/4″ NPT
Number of Ports 5 Ports
Cv Factor 1.1
Operating Pressure Range 30 – 145 PSIG
Pilot Type Internal Pilot
Voltage 110/120 VAC
Electrical Connection 15 mm 3-Pin DIN 43650C
Override Type Non-locking
Body Material Aluminum
Seal Material Nitrile
Operating Temperature -15°C to 49°C (5°F to 120°F)
Response Time 22 ms
Mounting Style Inline / Body Ported
Media Compressed Air
Protection Rating NEMA 4
Country of Origin USA
