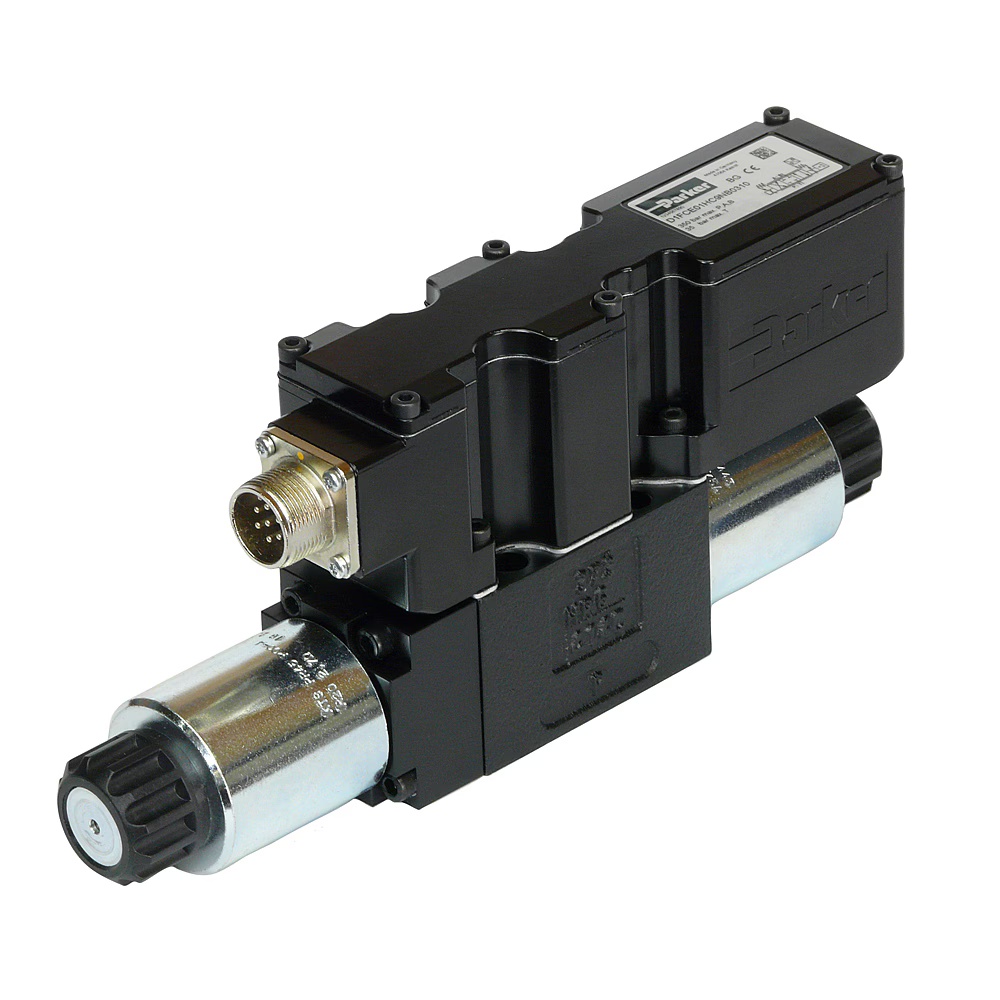

Parker D1FC Direct Operated Proportional Directional Control Valve
Description:
The Parker D1FC Direct Operated Proportional Directional Control Valve is a high-performance NG06 (CETOP 3) hydraulic valve designed for precise flow and direction control in industrial hydraulic systems. Featuring onboard digital electronics, integrated LVDT position feedback, and high dynamic response, the D1FC ensures accurate and stable control in demanding applications such as machine tools, presses, and automation systems.
share:
Parker D1FC Direct Operated Proportional Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Series | Parker D1FC |
| Type | Direct operated proportional directional control valve |
| Size | NG06 / CETOP 3 / ISO 4401 |
| Max Operating Pressure | 350 bar (ports P, A, B) |
| Tank Port Pressure | Up to 250 bar |
| Rated Flow | 6 / 12 / 20 L/min (at Δp = 5 bar) |
| Control Type | Proportional solenoid |
| Electronics | Digital onboard electronics |
| Feedback System | Integrated LVDT spool position sensor |
| Operating Voltage | Typically 24 V DC (varies by configuration) |
| Protection Class | IP65 (mounted and connected) |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Subplate mounting (ISO 4401) |
| Fluid Type | Hydraulic oil (DIN 51524) |
| Viscosity Range | 30–80 cSt |
| Spool Type | Overlap / zero lap / low lap options |
| Function | 4/3 directional control |
| Communication (optional) | EtherCAT interface |
