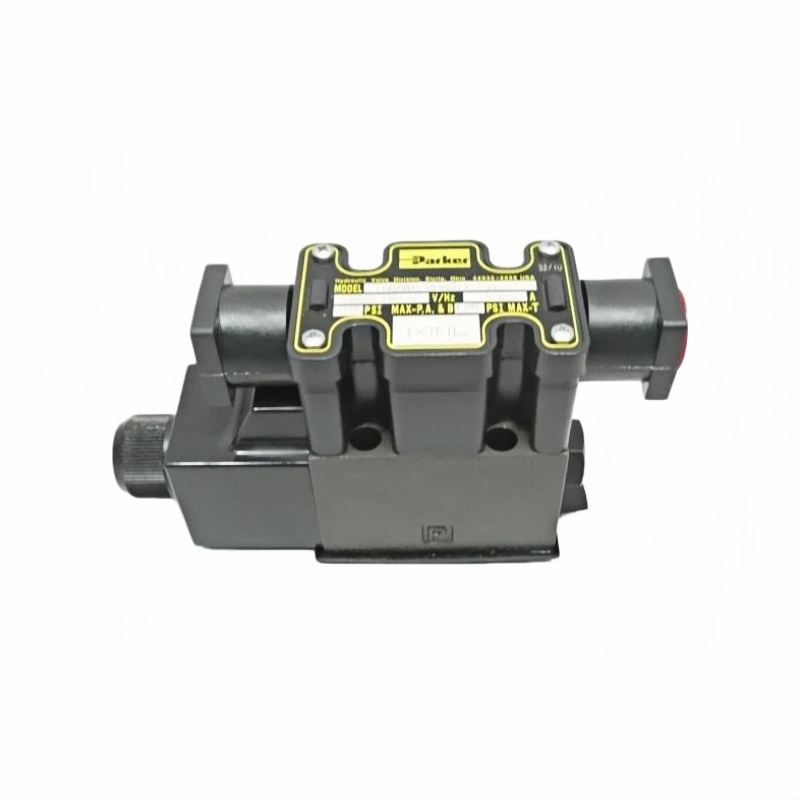

Parker D1VW020BNYCF91 Hydraulic Directional Control Valve
Description:
The Parker Hannifin D1VW020BNYCF91 is a high-performance hydraulic directional control valve designed for precise flow switching in industrial hydraulic systems. It belongs to the D1VW series, which is widely used in mobile machinery, industrial automation, and high-pressure hydraulic applications.
share:
Parker D1VW020BNYCF91 Hydraulic Directional Control Valve
Key advantages:
- High switching reliability under pressure
- Compact and robust design for industrial environments
- Suitable for high-cycle operation
- Easy installation with standardized mounting pattern
- Compatible with various hydraulic systems and fluids
| Item | Specification |
|---|---|
| Product Model | D1VW020BNYCF91 |
| Series | D1VW |
| Manufacturer | Parker Hannifin |
| Function | 4/2 or 4/3 directional control valve (config-dependent) |
| Operation Type | Solenoid operated |
| Mounting Pattern | ISO 4401-02 / CETOP 2 |
| Max Working Pressure | Up to 350 bar (port dependent) |
| Flow Capacity | Approx. 80 L/min (depending on configuration) |
| Voltage Options | 12V DC / 24V DC / AC variants (coil dependent) |
| Fluid Type | Hydraulic oil (mineral-based oils recommended) |
| Viscosity Range | 15–380 mm²/s |
| Temperature Range | -20°C to +80°C |
| Sealing Material | NBR / FKM (depending on version) |
| Installation Position | Optional (universal mounting) |
| Weight | Approx. 1.4–1.8 kg |
