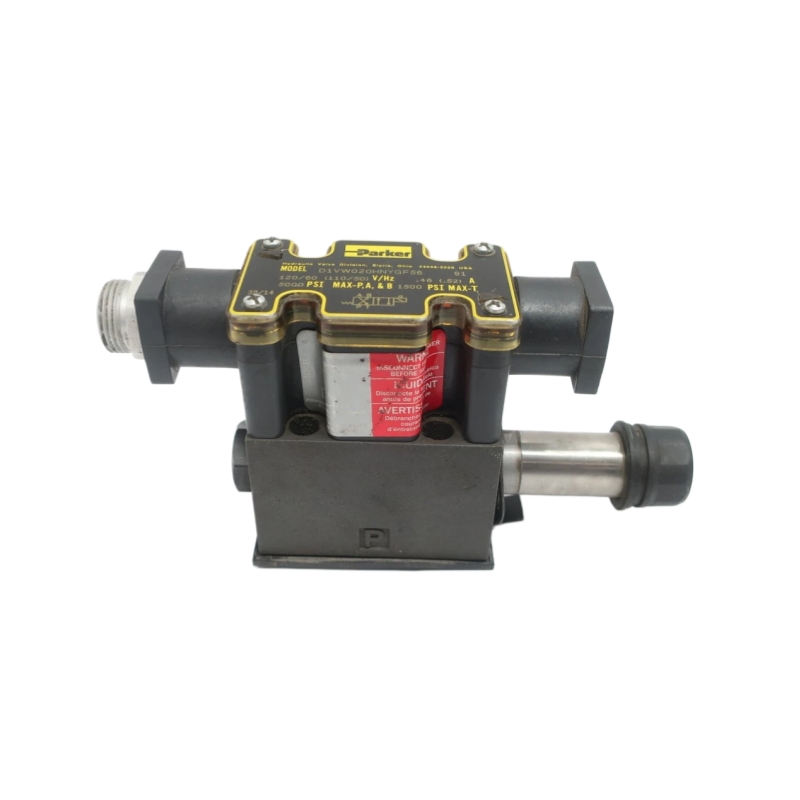

Parker D1VW020HNYGF5691 Hydraulic Solenoid Valve

Parker D1VW020HNYGF5691 Hydraulic Solenoid Valve

Description:

The Parker D1VW020HNYGF5691 is a high-performance hydraulic solenoid-operated directional control valve designed for precise fluid control in hydraulic systems. It belongs to the D1VW series, widely used in industrial machinery due to its reliable switching performance, compact design, and compatibility with high-pressure hydraulic applications. This valve ensures stable operation, fast response time, and long service life, making it suitable for demanding hydraulic environments.

share:

Parker D1VW020HNYGF5691 Hydraulic Solenoid Valve

Item Specification
Model D1VW020HNYGF5691
Series Parker D1VW
Valve Type Solenoid-operated directional control valve
Mounting Pattern ISO 4401 / CETOP 03
Max Operating Pressure Up to 350 bar (5075 psi)
Flow Capacity Up to 80 L/min (depending on configuration)
Voltage Options 12V DC / 24V DC / 110V AC / 220V AC
Actuation Single / Double solenoid (varies by configuration)
Fluid Type Hydraulic oil (mineral-based)
Viscosity Range 10–400 mm²/s
Ambient Temperature -20°C to +50°C
Fluid Temperature -20°C to +80°C
Leakage Minimal internal leakage design
Body Material High-strength cast steel
Seal Material NBR / FKM (depending on version)
Installation Position Any position
