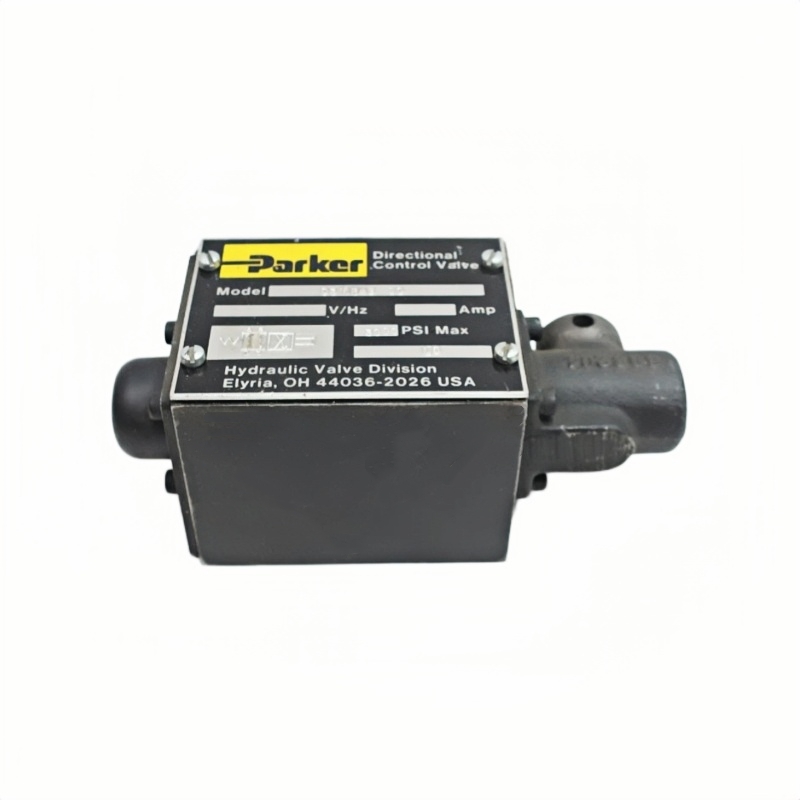

Parker D3MR4B 10 Hydraulic Directional Control Valve
Description:
share:
Parker D3MR4B 10 Hydraulic Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Name | Parker D3MR4B 10 Hydraulic Directional Control Valve |
| Manufacturer | Parker |
| Valve Type | Hydraulic Directional Control Valve |
| Series | D3M Series |
| Model | D3MR4B 10 |
| Mounting Type | Subplate / CETOP 3 / NG6 |
| Control Type | Solenoid Operated |
| Number of Ports | 4-Way |
| Number of Positions | 3-Position |
| Maximum Operating Pressure | Up to 350 bar |
| Rated Flow | Up to 80 L/min |
| Voltage Options | 24V DC / 110V AC / 220V AC |
| Fluid Type | Mineral Hydraulic Oil |
| Operating Temperature | -20°C to +70°C |
| Seal Material | NBR Standard |
| Installation Standard | ISO 4401 |
| Application | Industrial Hydraulic Systems |
| Feature | High reliability and fast switching response |
