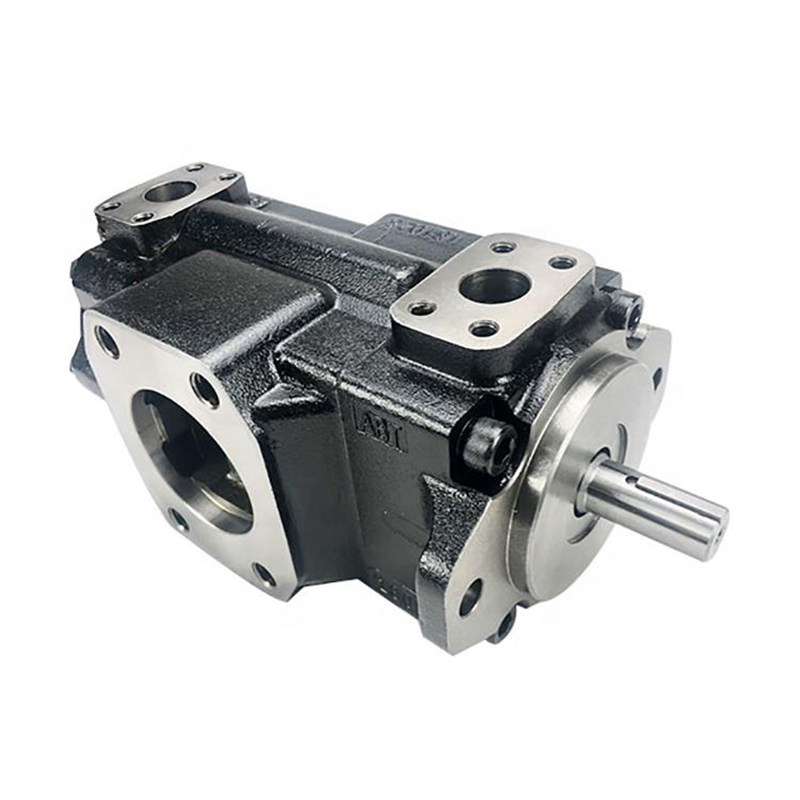

Parker Denison T7 Series Vane Pump
Description:
The Parker Denison T7 Series Vane Pump is a high-performance fixed-displacement hydraulic pump designed for industrial and mobile hydraulic systems. Featuring a balanced vane design, the T7 Series delivers high efficiency, low noise operation, long service life, and excellent resistance to contamination. Available in single, double, and triple pump configurations, it supports operating pressures up to 300 bar continuous and 320 bar peak, making it ideal for construction machinery, injection molding machines, metal processing equipment, marine systems, and industrial automation applications.
share:
Parker Denison T7 Series Vane Pump
| Parameter | Specification |
|---|---|
| Product Name | Parker Denison T7 Series Vane Pump |
| Pump Type | Fixed Displacement Balanced Vane Pump |
| Series | T7B, T7D, T7E, T7BS, T7DS, T7ES, T7BB, T7DB, T7ED, T7DC, T7DCB |
| Configuration | Single, Double, Triple Pump |
| Displacement Range | 5 – 268.7 cm³/rev |
| Operating Pressure | Up to 300 bar (Continuous) |
| Peak Pressure | Up to 320 bar |
| Speed Range | 600 – 3,000 rpm |
| Flow Rate | 11 – 537 L/min @ 2000 rpm |
| Rotation | Clockwise or Counter-clockwise |
| Mounting Type | SAE Flange / ISO Mounting |
| Shaft Options | Keyed, Splined |
| Fluid Type | Mineral Hydraulic Oil |
| Filtration Level | ISO 4406 18/16/13 or Better |
| Operating Temperature | Depends on fluid specification |
| Noise Level | Low Noise Balanced Vane Design |
| Applications | Industrial Machinery, Marine, Construction Equipment, Hydraulic Power Units |
| Main Advantages | High Efficiency, Long Service Life, Low Pulsation, Easy Maintenance |
