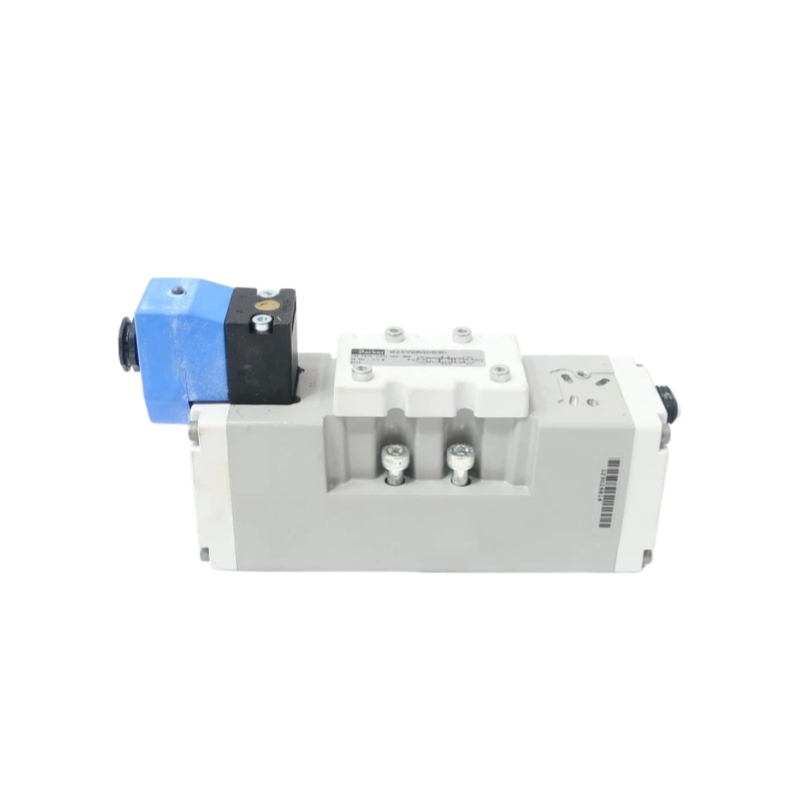

Parker H25VXBG0B9D Double Solenoid Valve
Description:
The Parker H25VXBG0B9D Double Solenoid Valve is a 4-way, 3-position pneumatic directional control valve designed for reliable industrial automation and fluid power systems. It belongs to Parker’s H Series ISO 5599-2 valve family and features a double solenoid design with all ports blocked in the center position for enhanced operational safety and precise actuator control. The valve operates with 24 VDC internal pilot control and is widely used in manufacturing machinery, packaging systems, and automated production equipment requiring stable and repeatable valve switching performance.
share:
Parker H25VXBG0B9D Double Solenoid Valve
| Parameter | Specification |
|---|---|
| Product Model | Parker H25VXBG0B9D |
| Valve Type | Directional Control Valve |
| Series | H Series ISO Valve |
| Function | 4-Way, 3-Position |
| Center Configuration | All Ports Blocked |
| Actuation | Double Solenoid |
| Pilot Type | Internal Pilot |
| Voltage | 24 VDC |
| Flow Coefficient (Cv) | 2.8 |
| Mounting Standard | ISO 5599-2 |
| Manual Override | Non-Locking |
| Protection Rating | IP65 |
| Body Material | Aluminum |
| Seal Material | Nitrile |
| Operating Function | Pneumatic Control |
| Typical Applications | Industrial Automation, Pneumatic Systems |
| Certification | CE, cCSAus |
| Endurance Life | Up to 72 Million Switching Cycles |
| Manufacturer | Parker Hannifin |
