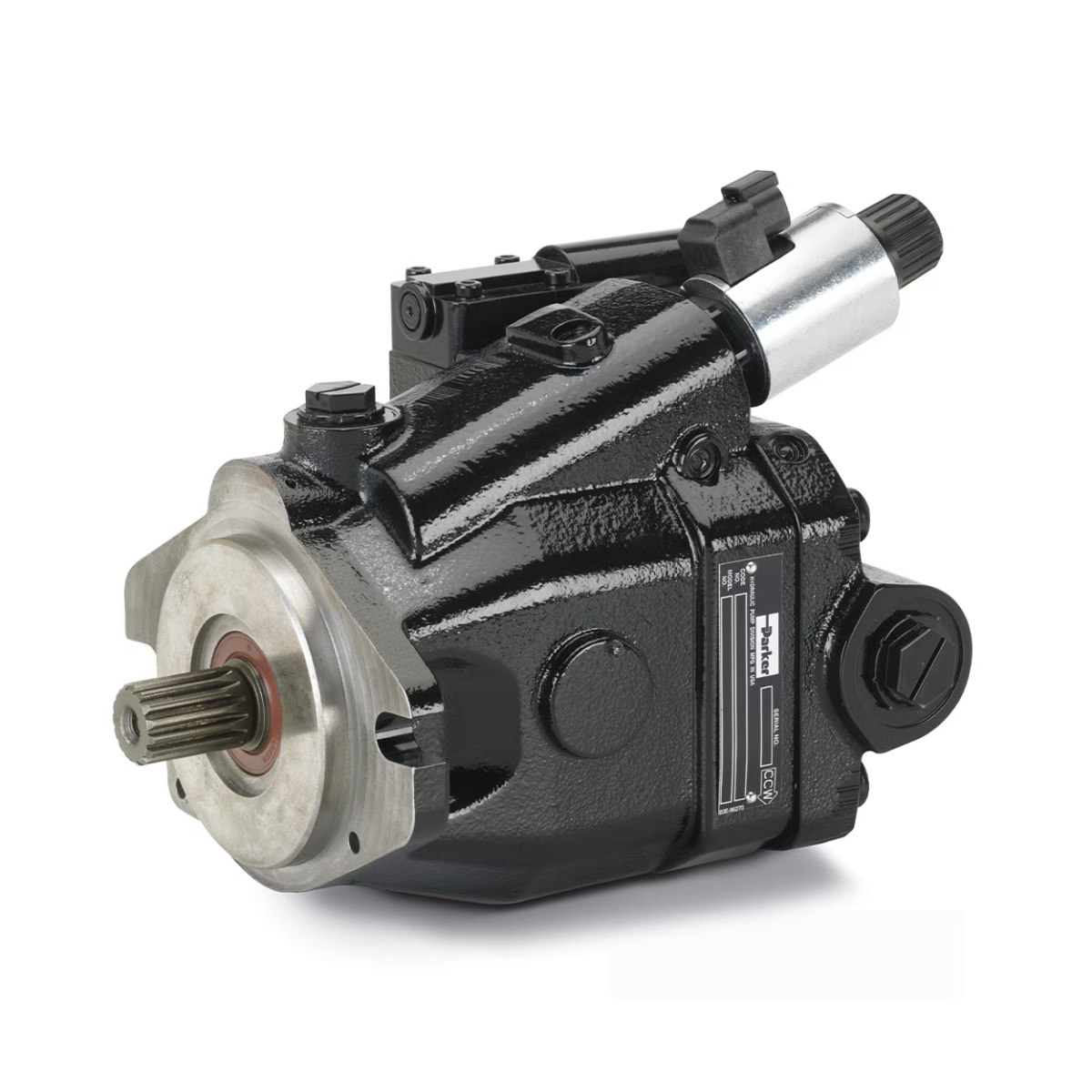

Parker P1M Series Medium Pressure Mobile Pumps
Description:
The Parker P1M Series Medium Pressure Mobile Pumps are high-performance axial piston pumps engineered for mobile hydraulic applications. Designed to deliver reliable power, excellent efficiency, and long service life, the P1M series is widely used in construction equipment, agricultural machinery, material handling systems, and other mobile hydraulic applications. These pumps offer smooth operation, compact design, and dependable performance under varying load conditions.
share:
Parker P1M Series Medium Pressure Mobile Pumps
| Parameter | Specification |
|---|---|
| Series | P1M Series |
| Type | Medium Pressure Mobile Pump |
| Max Pressure | 250 bar (3625 psi) |
| Flow Rate | 20–60 L/min (5.3–15.8 GPM) |
| Displacement | 10–30 cc/rev |
| Mounting | SAE Flange / Foot Mount |
| Drive Type | Gear / Shaft Driven |
| Fluid Type | Hydraulic Oil (HLP/HVLP) |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) |
| Shaft Rotation | Clockwise / Counterclockwise Options |
| Noise Level | ≤75 dB |
| Weight | 12–25 kg (26–55 lbs) |
