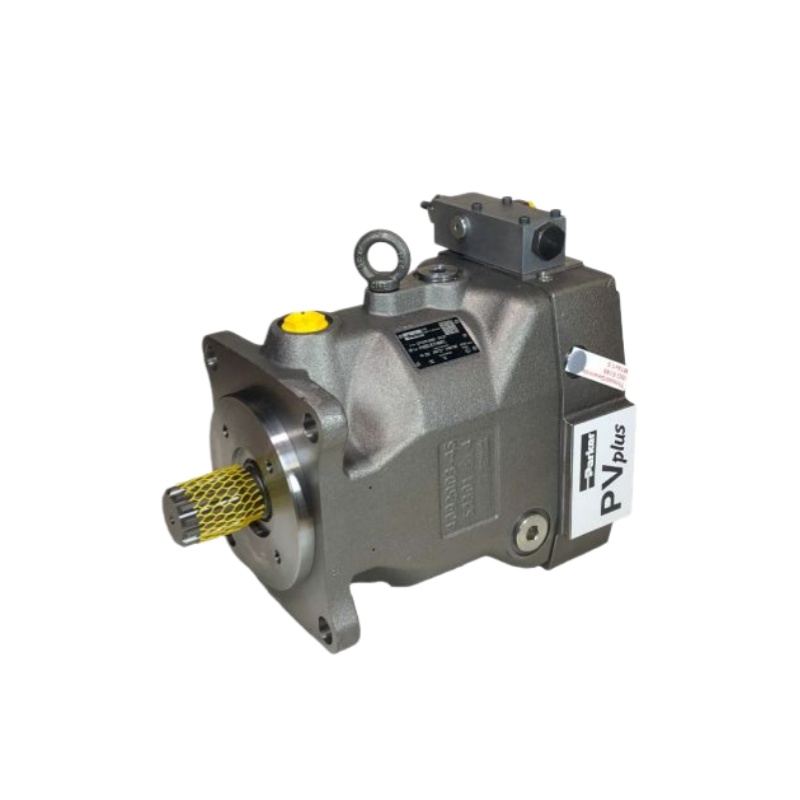

Parker PV092L1E1T1NMFC Piston Pump
Description:
The Parker PV092L1E1T1NMFC is a high-performance variable displacement axial piston pump from Parker’s PV Series, designed for demanding open-circuit hydraulic systems. With a 92 cc/rev displacement, this pump delivers excellent efficiency, low noise, and precise flow control. It is widely used in industrial machinery, marine equipment, construction machinery, metal processing equipment, and hydraulic power units. The robust swashplate design, fast control response, and high operating pressure make it an ideal solution for continuous heavy-duty applications.
share:
Parker PV092L1E1T1NMFC Piston Pump
| Item | Specification |
|---|---|
| Product Model | Parker PV092L1E1T1NMFC |
| Manufacturer | Parker Hannifin |
| Product Type | Variable Displacement Axial Piston Pump |
| Series | PV Series |
| Hydraulic Circuit | Open Circuit |
| Displacement | 92 cc/rev |
| Pump Design | Swash Plate Axial Piston |
| Control Type | Load Sensing Control |
| Rotation | According to model code |
| Shaft Type | Splined Shaft |
| Mounting | SAE/ISO Standard Flange |
| Operating Pressure | Up to 420 bar (depending on configuration) |
| Peak Pressure | Up to 450 bar (intermittent) |
| Maximum Speed | Depends on operating conditions |
| Fluid Type | Mineral Hydraulic Oil or Equivalent |
| Applications | Construction Equipment, Industrial Machinery, Marine Systems, Hydraulic Power Units, Mining Equipment |
| Features | High Efficiency, Low Noise, Fast Dynamic Response, Long Service Life, Compact Design |
| Brand | Parker |
| Condition | New / Original Available |
| Warranty | 12 Months (Supplied by YsHydraulic) |
