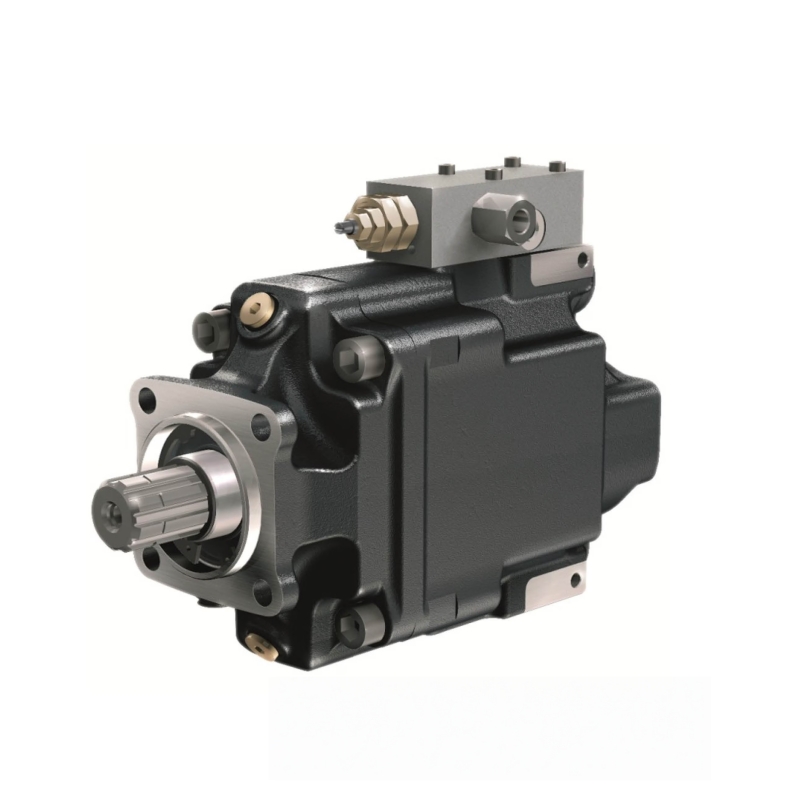

Parker Series VP1 Axial Piston Variable Displacement Pumps
Description:
The Parker VP1 Series is a high-performance axial piston variable displacement pump designed for demanding mobile and industrial hydraulic applications. Featuring a robust swashplate design, high operating pressure capability, and excellent volumetric efficiency, the VP1 pump delivers reliable performance, reduced energy consumption, and long service life. It is widely used in truck hydraulics, forestry machinery, construction equipment, mining vehicles, and material handling systems.
share:
Parker Series VP1 Axial Piston Variable Displacement Pumps
| Parameter | Specification |
|---|---|
| Product Name | Parker VP1 Axial Piston Variable Displacement Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Design | Swashplate Type |
| Mounting | SAE Standard |
| Rotation | Clockwise / Counterclockwise |
| Displacement Range | 45 – 130 cc/rev (depending on model) |
| Maximum Operating Pressure | Up to 420 bar (6,090 psi) |
| Peak Pressure | Up to 480 bar (6,960 psi) |
| Speed Range | Up to 3,300 rpm |
| Control Options | Pressure Compensator, Load Sensing, Electronic Control |
| Fluid Compatibility | Mineral-Based Hydraulic Oils |
| Shaft Options | Splined, Keyed, SAE |
| Port Connections | SAE Flange Ports |
| Efficiency | High Volumetric & Mechanical Efficiency |
| Applications | Trucks, Cranes, Forestry Equipment, Construction Machinery |
| Manufacturer | Parker Hannifin |
| Condition | New / Replacement Available from YsHydraulic |
