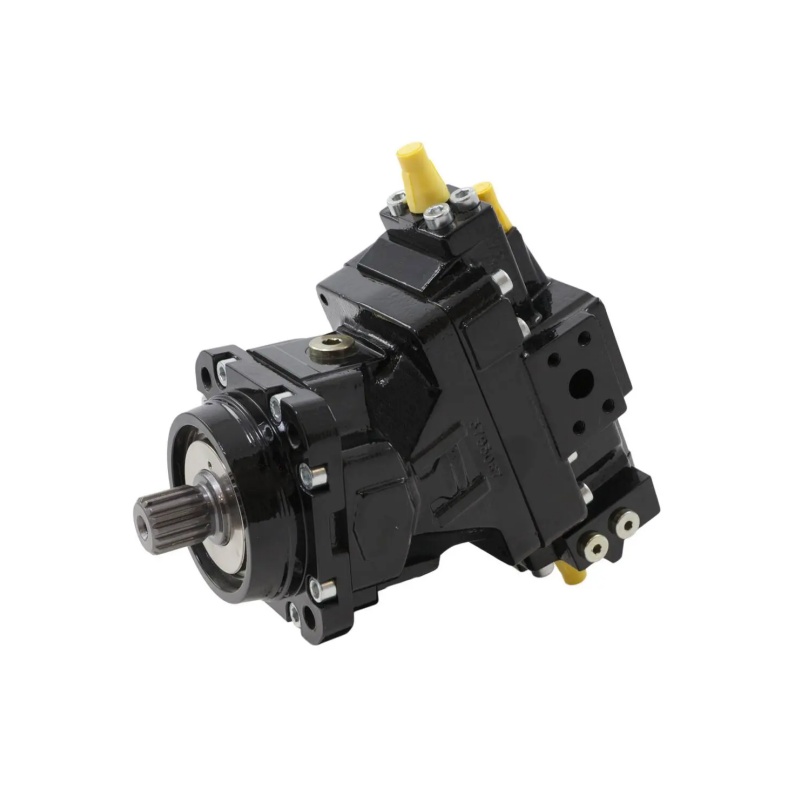

Parker V12 Motors
Description:
Parker V12 Motors are high-performance bent-axis variable displacement hydraulic motors designed for demanding mobile and industrial applications. They deliver excellent efficiency, high starting torque, and reliable operation under high-pressure conditions. The V12 series features a compact design, wide displacement range, and proven durability, making it ideal for winches, forestry machinery, drilling equipment, marine systems, and construction machinery. Parker V12 motors provide precise speed control, long service life, and reduced energy consumption even in continuous heavy-duty operation.
share:
Parker V12 Motors
| Specification | Details |
|---|---|
| Product Name | Parker V12 Variable Displacement Motor |
| Manufacturer | Parker Hannifin |
| Motor Type | Bent-Axis Variable Displacement Piston Motor |
| Displacement Range | 60–160 cm³/rev (depending on model) |
| Operating Pressure | Up to 480 bar |
| Peak Pressure | Up to 530 bar |
| Rotation | Bi-directional |
| Speed Range | High-speed operation depending on displacement |
| Control Options | Hydraulic, Electric, Pressure Compensated |
| Mounting | SAE Standard Flange |
| Shaft Options | Splined, Keyed |
| Hydraulic Fluid | Mineral Oil & Approved Synthetic Fluids |
| Operating Temperature | -20°C to +90°C (fluid dependent) |
| Applications | Winches, Forestry Equipment, Marine, Drilling, Mobile Machinery, Industrial Systems |
