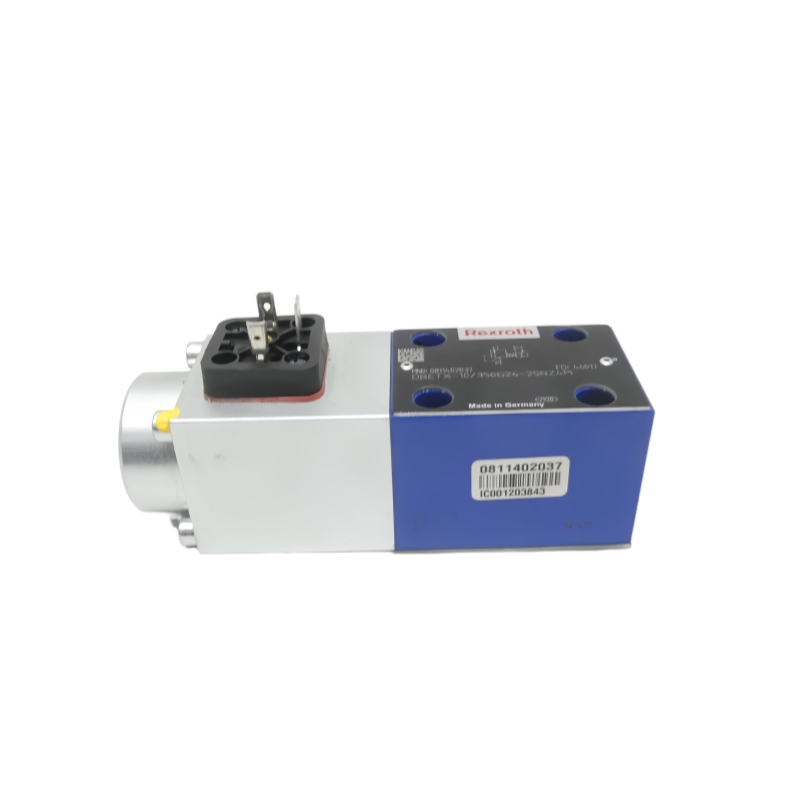

Rexroth 0811402037 Pressure Relief Valve
Description:
The Rexroth 0811402037 Pressure Relief Valve is a high-performance proportional pressure relief valve designed for precise hydraulic pressure control in industrial systems. Manufactured by Bosch Rexroth, this valve features direct actuation, reliable pressure limiting performance, and stable operation under demanding hydraulic applications. It is widely used in industrial machinery, hydraulic power units, automation systems, and heavy equipment requiring accurate pressure regulation.
share:
Rexroth 0811402037 Pressure Relief Valve
| Parameter | Specification |
|---|---|
| Product Name | Rexroth Pressure Relief Valve |
| Material Number | 0811402037 |
| Model Code | DBETX-1X/350G24-25NZ4M |
| Valve Type | Proportional Pressure Relief Valve |
| Actuation Type | Electrical with External Amplifier |
| Mounting Type | Subplate Mounting |
| Connection Diagram | ISO 4401-03-02-0-05 |
| Nominal Size | Size 6 |
| Maximum Operating Pressure | 315 bar |
| Pressure Rating | 350 bar |
| Rated Flow | 1 L/min |
| Maximum Flow | 1.5 L/min |
| Flow Direction | P → T |
| Supply Voltage | 24 V DC |
| Electrical Connector | 3-Pole Connector (2 + PE) |
| Hydraulic Fluids | HL, HLP, HLPD, HVLP, HVLPD, HFC |
| Seal Material | NBR |
| Weight | Approx. 1.76 kg |
| Application | Industrial Hydraulic Systems |
