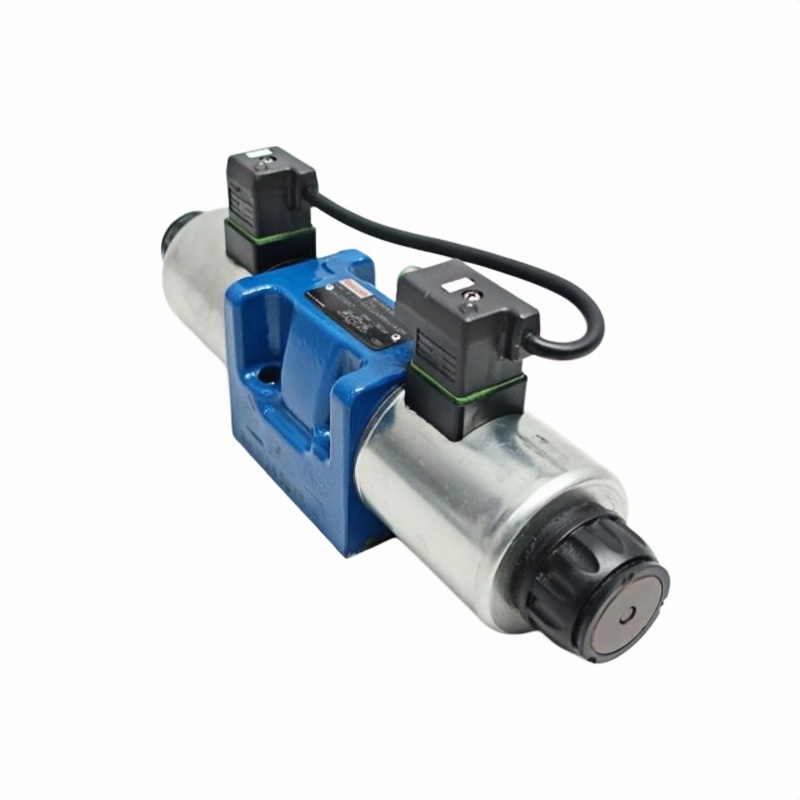

Rexroth 4WE10J73 Directional Spool Valve
Description:
The Rexroth 4WE10J73 Directional Spool Valve is a direct-operated hydraulic directional control valve designed for precise oil flow switching in industrial hydraulic systems. It features a robust solenoid-actuated spool design, high pressure resistance, and reliable performance in demanding applications such as industrial machinery, hydraulic power units, automation equipment, and mobile hydraulic systems. The valve is widely recognized for stable switching performance, compact installation dimensions, and long service life.
share:
Rexroth 4WE10J73 Directional Spool Valve
| Parameter | Specification |
|---|---|
| Product Name | Rexroth 4WE10J73 Directional Spool Valve |
| Valve Type | Directional Spool Valve |
| Operation Type | Solenoid-Actuated |
| Size | 10 |
| Port Configuration | 4-Way |
| Switching Positions | 3 Positions |
| Spool Symbol | J73 |
| Mounting Type | Subplate Mounting |
| Connection Standard | ISO 4401-05-04-0-05 |
| Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 160 L/min |
| Component Series | 5X |
| Voltage Options | 12V DC / 24V DC / 110V DC |
| Electrical Connector | 3-Pole Connector (2 + PE) |
| Seal Material | NBR |
| Hydraulic Fluids | HL, HLP, HLPD, HVLP, HVLPD, HFC |
| Weight | Approx. 5.2 – 5.6 kg |
| Application | Industrial Hydraulic Systems |
| Brand | Bosch Rexroth |
