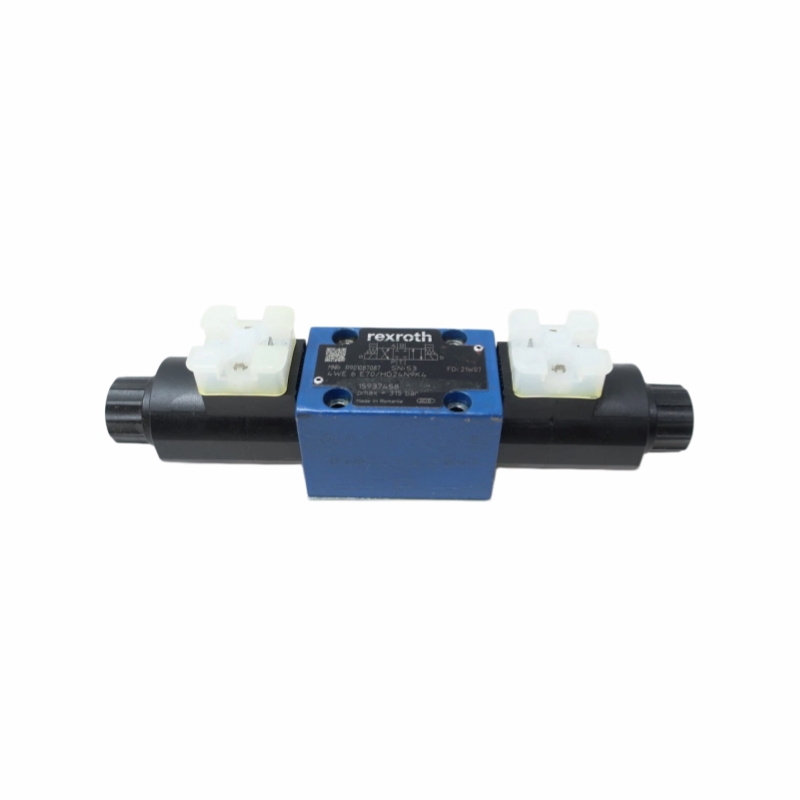

Rexroth 4WE6 E70 Hydraulic Direction Control Valve
Description:
The Rexroth 4WE6 E70 Hydraulic Direction Control Valve is a high-performance solenoid-operated directional spool valve designed for controlling the start, stop, and flow direction of hydraulic oil in industrial hydraulic systems. Manufactured by Bosch Rexroth, the 4WE6 series is widely used in machine tools, automation equipment, hydraulic power units, injection molding machines, and industrial machinery due to its reliable switching performance, compact structure, and long service life.
share:
Rexroth 4WE6 E70 Hydraulic Direction Control Valve
| Parameter | Specification |
|---|---|
| Product Name | Rexroth 4WE6 E70 Hydraulic Direction Control Valve |
| Valve Type | Solenoid Operated Directional Spool Valve |
| Series | 4WE6 |
| Size | NG6 / CETOP 3 |
| Spool Symbol | E |
| Switching Positions | 3 Position |
| Operation Type | Wet Pin DC/AC Solenoid |
| Mounting Type | Subplate Mounting |
| Hydraulic Fluid | Mineral Oil or Phosphate Ester |
| Max Operating Pressure | 350 bar |
| Max Flow Rate | 60 L/min |
| Voltage Options | 12V DC, 24V DC, 110V AC, 220V AC |
| Ambient Temperature Range | -30°C to +50°C |
| Fluid Temperature Range | -30°C to +80°C |
| Protection Class | IP65 |
| Sealing Material | NBR / FKM |
| Weight | Approx. 1.5 kg |
| Installation Standard | ISO 4401-03-02-0-05 |
| Application | Industrial Hydraulic Systems |
