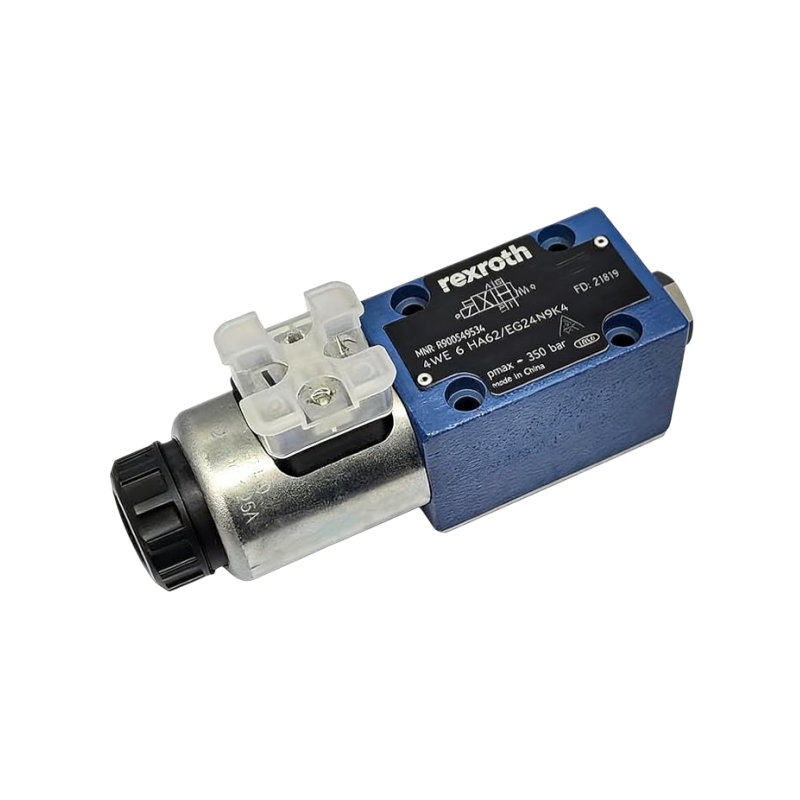

Rexroth 4WE6 Hydraulic Directional Valve
Description:
The Rexroth 4WE6 Hydraulic Directional Valve is a solenoid-operated directional spool valve designed to control the direction, start, and stop of hydraulic fluid flow. Featuring compact NG6/CETOP 03 design, high pressure capability, and reliable switching performance, the 4WE6 series is widely used in industrial machinery, hydraulic power units, automation systems, machine tools, and mobile equipment. Its robust construction ensures long service life and stable operation in demanding hydraulic applications.
share:
Rexroth 4WE6 Hydraulic Directional Valve
| Parameter | Specification |
|---|---|
| Product Name | Rexroth 4WE6 Hydraulic Directional Valve |
| Valve Type | Solenoid Operated Directional Spool Valve |
| Size | NG6 / CETOP 03 / NFPA D03 |
| Mounting Type | Subplate Mounting |
| Flow Direction | 4-Way, 2 or 3 Position |
| Maximum Operating Pressure | Up to 350 bar (5076 psi) |
| Maximum Flow Rate | Up to 80 L/min (21.1 GPM) |
| Hydraulic Fluid | Mineral Oil (HL, HLP) and compatible fluids |
| Voltage Options | 12V DC, 24V DC, 110V AC, 220V AC |
| Protection Class | IP65 (with mating connector) |
| Ambient Temperature | -30°C to +50°C |
| Fluid Temperature Range | -20°C to +80°C |
| Seal Material | NBR Standard, FKM Optional |
| Weight | Approx. 1.5–2.2 kg |
| Applications | Industrial Machinery, Hydraulic Power Units, Automation Equipment, Mobile Machinery |
