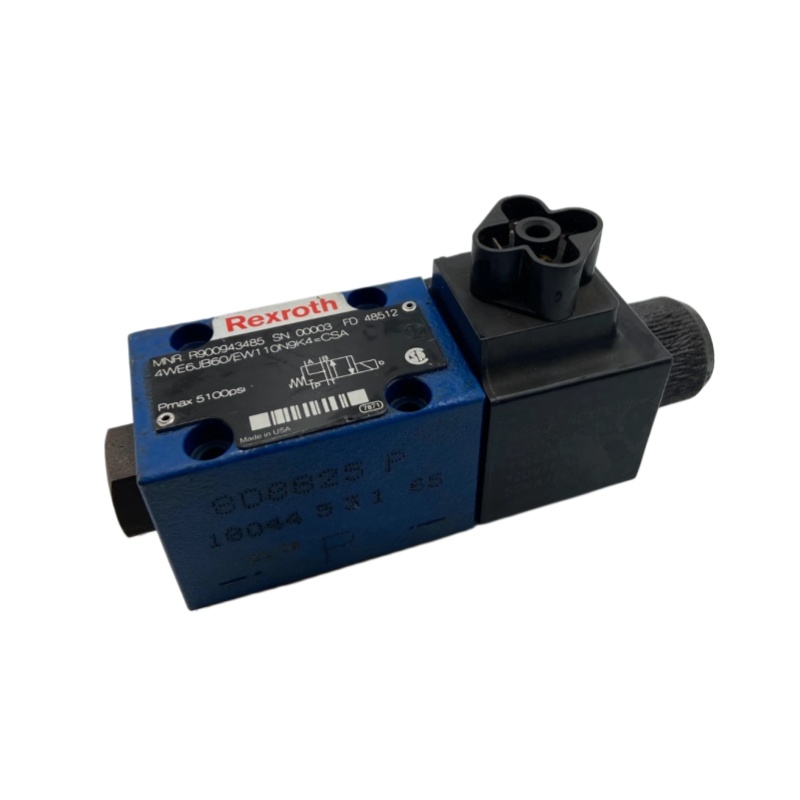

Rexroth 4WE6JB6X Directional Spool Valve
Description:
The Rexroth 4WE6JB6X Directional Spool Valve is a direct-operated, solenoid-actuated hydraulic directional control valve designed for precise oil flow switching in industrial hydraulic systems. Built to ISO 4401/CETOP 3 standards, it offers reliable performance, fast response, and a compact design suitable for machine tools, automation equipment, manufacturing lines, and mobile hydraulic applications. With a maximum operating pressure of 350 bar and a flow capacity up to 80 L/min (DC version), the 4WE6JB6X provides dependable operation even in demanding environments.
share:
Rexroth 4WE6JB6X Directional Spool Valve
| Parameter | Specification |
|---|---|
| Product Name | Rexroth 4WE6JB6X Directional Spool Valve |
| Valve Type | Direct-Operated Directional Spool Valve |
| Manufacturer | Bosch Rexroth |
| Series | 6X |
| Nominal Size | NG6 (Size 6) |
| Mounting Pattern | ISO 4401-03 / CETOP 3 / NFPA D03 |
| Spool Symbol | JB |
| Number of Ports | 4 |
| Switching Positions | 2 |
| Actuation | Solenoid Operated |
| Maximum Operating Pressure | 350 bar |
| Maximum Flow (DC Coil) | 80 L/min |
| Maximum Flow (AC Coil) | 60 L/min |
| Hydraulic Fluids | HL, HLP, HLPD, HVLP, HVLPD (depending on seal version) |
| Electrical Connection | 3-pin Connector (2 + PE) according to EN 175301-803 |
| Supply Voltage | Available in 12VDC, 24VDC, 110/120VAC and other versions |
| Mounting Type | Subplate Mounting |
| Approximate Weight | 1.4–1.6 kg |
| Typical Applications | Machine tools, hydraulic power units, industrial automation, presses, injection molding machines |
