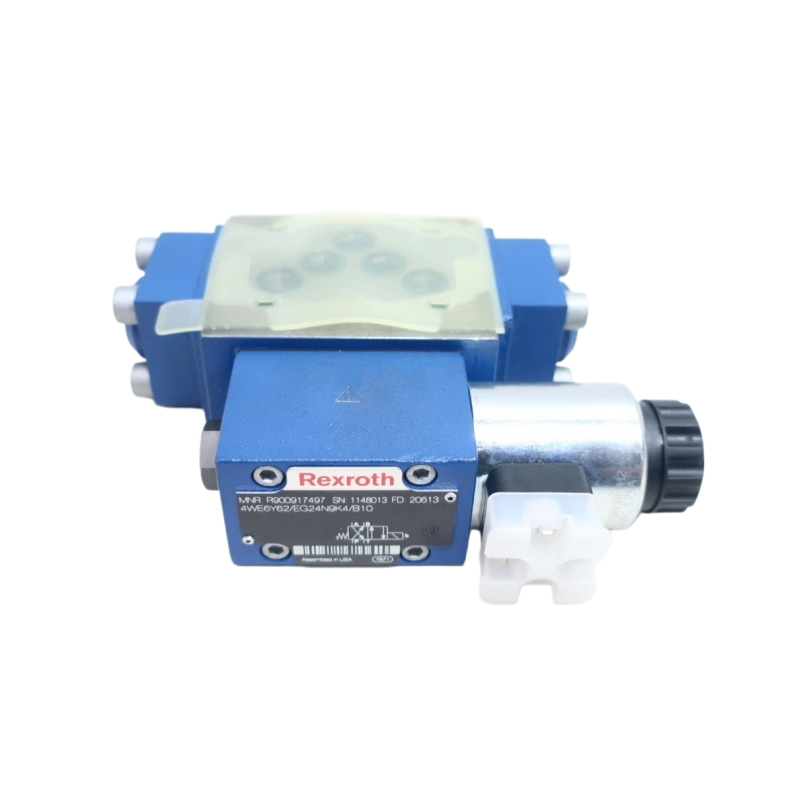

Rexroth 4WE6Y62 Solenoid Valve
Description:
The Rexroth 4WE6Y62 solenoid valve is a high-performance NG6 (CETOP 03 / ISO 4401-03) hydraulic directional control valve used to regulate oil flow direction in industrial hydraulic systems. It is widely applied in machine tools, presses, automation systems, and hydraulic power units. This valve uses a solenoid-operated spool mechanism with spring return, enabling fast and reliable switching between hydraulic flow paths under PLC control signals (typically 24VDC).
share:
Rexroth 4WE6Y62 Solenoid Valve
| Item | Specification |
|---|---|
| Model | 4WE6Y62 (R900561276) |
| Manufacturer | Bosch Rexroth |
| Valve Type | Solenoid-operated directional spool valve |
| Size | NG6 / CETOP 03 / ISO 4401-03 |
| Function | 4/2 or 4/3 directional control (spool type Y) |
| Operating Voltage | 24V DC (standard coil) |
| Max Pressure | 315–350 bar |
| Max Flow | Up to 60 L/min (DC operation) |
| Mounting Pattern | ISO 4401-03-02-0-05 |
| Actuation | Solenoid with spring return |
| Hydraulic Fluid | HL, HLP, HFC compatible oils |
| Temperature Range | -20°C to +80°C |
| Response Time | Fast switching (<100 ms typical) |
| Sealing Material | NBR (standard) |
| Manual Override | Optional (push-button type) |
| Weight | Approx. 1.4–1.5 kg |
