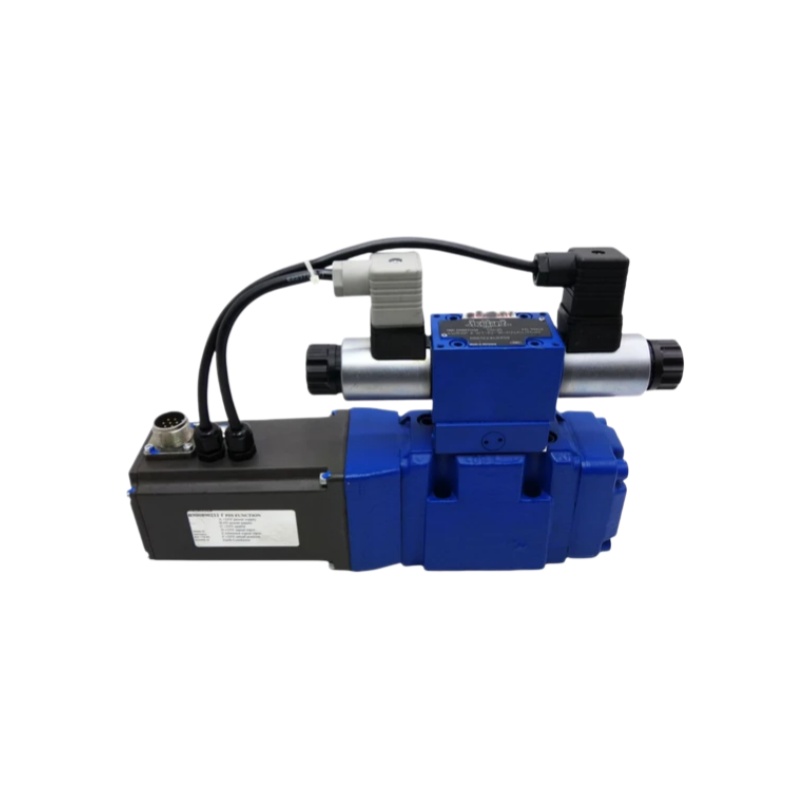

Rexroth 4WRKE Directional Control Proportional Valves
Description:
The Rexroth 4WRKE Directional Control Proportional Valve is a high-performance electro-hydraulic proportional directional valve with integrated electronics (OBE). It provides precise control of flow direction and flow rate for demanding hydraulic applications. Designed for closed-loop control systems, the 4WRKE series offers outstanding dynamic response, excellent repeatability, and reliable operation in industrial automation, machine tools, steel production, injection molding machines, hydraulic presses, and testing equipment.
share:
Rexroth 4WRKE Directional Control Proportional Valves
| Parameter | Specification |
|---|---|
| Product Name | Rexroth 4WRKE Directional Control Proportional Valve |
| Brand | Bosch Rexroth |
| Valve Type | Proportional Directional Control Valve |
| Series | 4WRKE |
| Control Type | Electro-hydraulic Proportional |
| Electronics | Integrated Digital Electronics (OBE) |
| Mounting Type | Subplate Mounting (ISO 4401) |
| Nominal Sizes | NG6, NG10, NG16, NG25, NG27, NG35 |
| Number of Ports | 4-Way |
| Switching Positions | 3 Position |
| Flow Direction | Bidirectional |
| Control Signal | ±10 V, 4–20 mA (depending on version) |
| Supply Voltage | 24 V DC |
| Maximum Operating Pressure | Up to 350 bar |
| Maximum Flow Rate | Up to 1,600 L/min (depending on size) |
| Hydraulic Fluid | Mineral Oil (HL, HLP), compatible fluids |
| Ambient Temperature | -20°C to +60°C |
| Fluid Temperature | -20°C to +80°C |
| Protection Class | IP65 (with proper connector installed) |
| Installation Position | Optional |
| Response Time | High dynamic response |
| Applications | Steel mills, machine tools, presses, injection molding machines, industrial automation, test benches |
