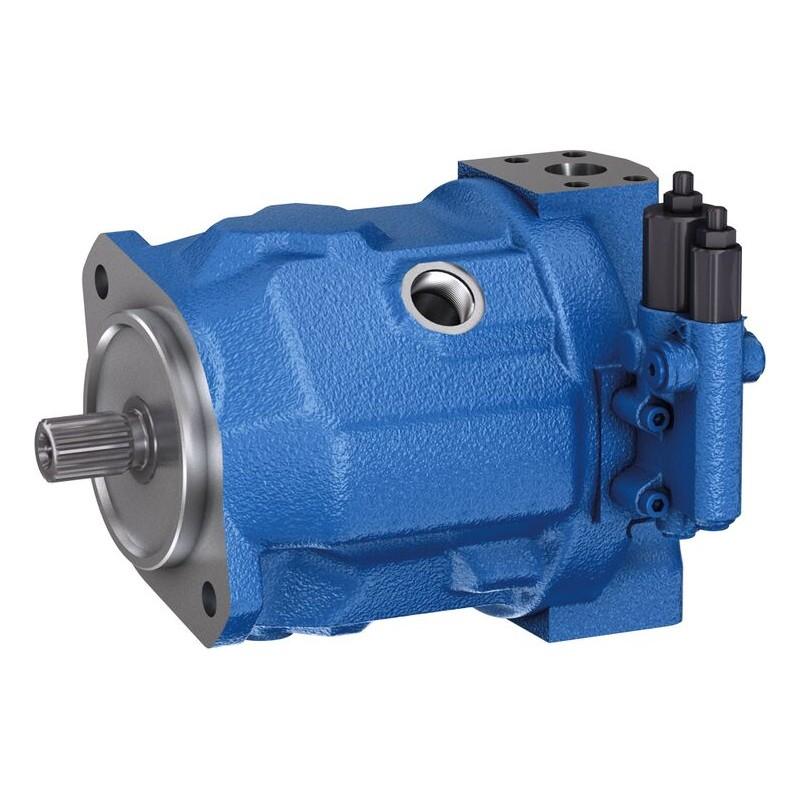

Rexroth A A10V Axial Piston Pump
Description:
The Rexroth A A10V Axial Piston Pump is a variable displacement swashplate pump designed for open-circuit hydraulic systems. It provides smooth and efficient hydraulic power with stepless flow adjustment proportional to drive speed and displacement. The A A10V series is widely used in construction machinery, industrial equipment, agricultural machines, marine applications, and material handling systems. It offers high reliability, compact design, low noise operation, and excellent volumetric efficiency for medium-pressure hydraulic applications.
share:
Rexroth A A10V Axial Piston Pump
| Item | Specification |
|---|---|
| Product Name | Rexroth A A10V Axial Piston Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Hydraulic Circuit | Open Circuit |
| Design | Swashplate Type |
| Series | Series 31 |
| Available Sizes | 18, 28, 45, 71, 88, 100, 140 cc/rev |
| Nominal Pressure | 280 bar (4,000 psi) |
| Maximum Pressure | 350 bar (5,100 psi) |
| Flow Control | Stepless Variable Displacement |
| Rotation | Clockwise or Counterclockwise |
| Mounting | SAE / ISO Flange Options |
| Shaft Options | Keyed or Splined Shaft |
| Control Options | DR, DRG, DFR, DFR1, DFLR and others |
| Working Medium | Mineral Hydraulic Oil or Compatible Fluids |
| Operating Temperature | Depends on hydraulic fluid specifications |
| Typical Applications | Construction Machinery, Agriculture, Industrial Equipment, Marine Systems, Mobile Hydraulics |
