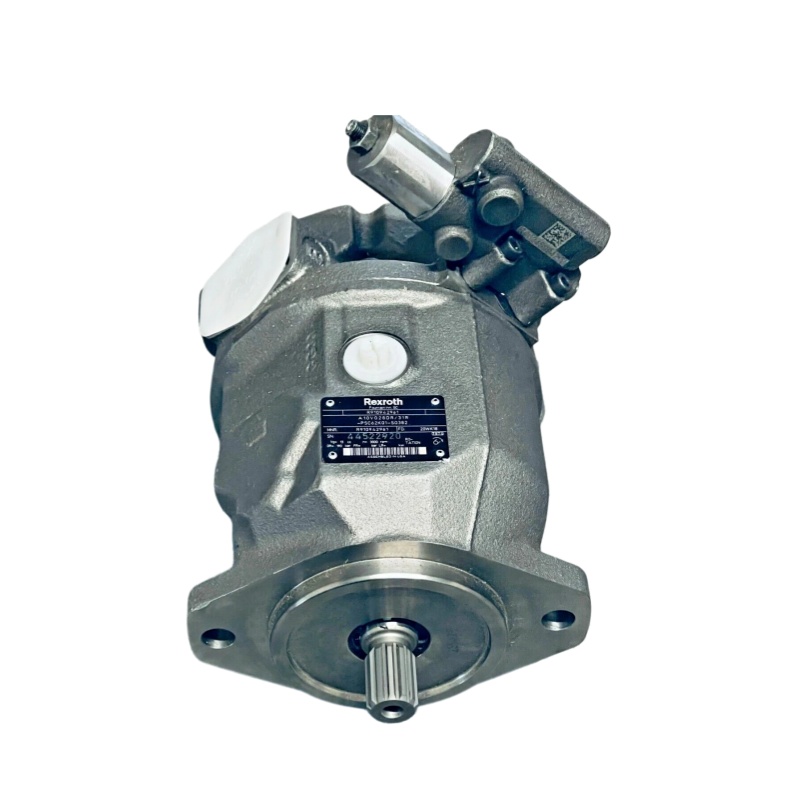

Rexroth A10VO28DR Variable Axial Piston Pump
Description:
The Rexroth A10VO28DR is a variable displacement axial piston pump designed for open-circuit hydraulic systems. Featuring a swashplate design and pressure-compensated (DR) control, it automatically adjusts flow output according to system pressure requirements, helping reduce energy consumption and improve overall hydraulic efficiency. The pump is widely used in construction machinery, industrial equipment, agricultural machinery, and mobile hydraulic applications. Typical displacement is 28 cm³/rev, with a nominal pressure of 280 bar and a maximum pressure of 350 bar.
share:
Rexroth A10VO28DR Variable Axial Piston Pump
| Parameter | Specification |
|---|---|
| Product Name | Rexroth A10VO28DR Variable Axial Piston Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Design | Swashplate Design |
| Circuit Type | Open Circuit |
| Displacement | 28 cm³/rev |
| Control Type | DR Pressure Compensator |
| Nominal Pressure | 280 bar |
| Maximum Pressure | 350 bar |
| Maximum Speed | 3000 rpm |
| Theoretical Flow @ 1500 rpm | 42 L/min |
| Rotation | Clockwise or Counterclockwise (depending on model code) |
| Mounting Flange | SAE 2-Bolt Flange |
| Shaft Options | Keyed Shaft / SAE Splined Shaft |
| Weight | Approx. 18 kg |
| Ports | Metric or SAE Versions Available |
| Applications | Construction Machinery, Industrial Equipment, Agricultural Machinery, Mobile Hydraulics |
