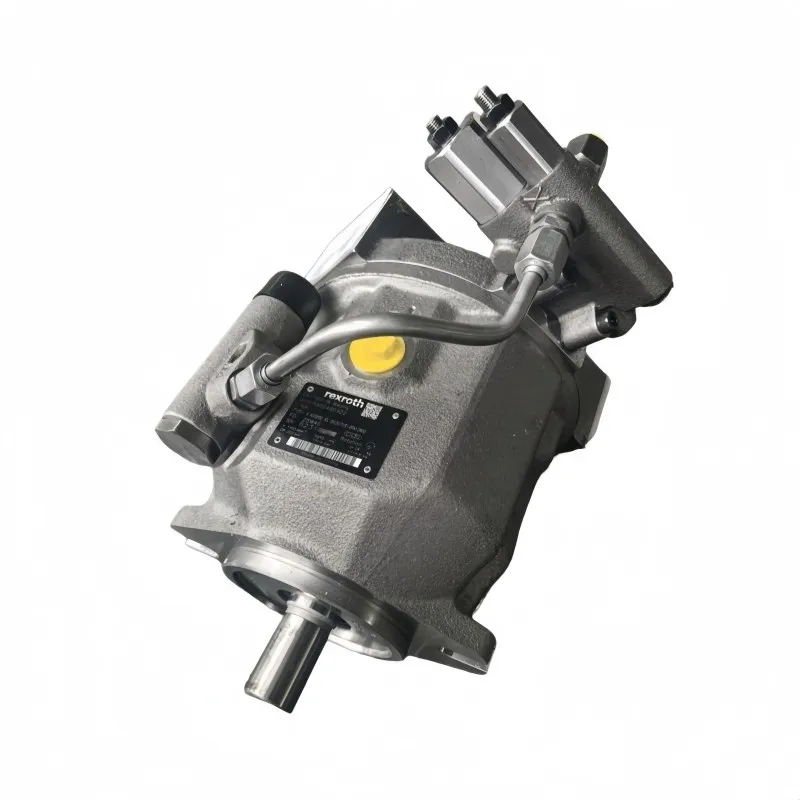

Rexroth A10VSO18 Series 31 Hydraulic Piston Pump
Description:
The Rexroth A10VSO18 Series 31 is a variable displacement axial piston pump designed for open-circuit hydraulic systems. Featuring a swashplate design, it delivers precise flow control, excellent suction characteristics, low noise operation, and high efficiency. The pump is widely used in industrial machinery, mobile equipment, machine tools, construction machinery, and hydraulic power units. With a nominal pressure of 280 bar and a maximum pressure of 350 bar, the A10VSO18 offers reliable performance and long service life in demanding applications.
share:
Rexroth A10VSO18 Series 31 Hydraulic Piston Pump
| Parameter | Specification |
|---|---|
| Manufacturer | Bosch Rexroth |
| Series | A10VSO Series 31 |
| Model | A10VSO18 |
| Pump Type | Variable Displacement Axial Piston Pump |
| Hydraulic Circuit | Open Circuit |
| Displacement | 18 cm³/rev |
| Nominal Pressure | 280 bar |
| Maximum Pressure | 350 bar |
| Nominal Speed | 3300 rpm |
| Maximum Speed | 3900 rpm |
| Flow @ 1800 rpm | 32 L/min |
| Maximum Flow | 59 L/min |
| Maximum Torque @ 280 bar | 80 Nm |
| Mounting Flange | ISO 3019-1 2-Hole |
| Shaft Options | Splined Shaft / Keyed Shaft |
| Rotation Direction | Clockwise or Counter-Clockwise |
| Suction Port | 1″ SAE |
| Pressure Port | 3/4″ SAE |
| Drain Port Thread | 9/16-18 UNF-2B |
| Weight | Approx. 13.8 kg |
| Control Options | DR, DFR, DFR1, DFLR, DG, ED, ER |
| Through Drive | Available |
| Application | Industrial & Mobile Hydraulics |
