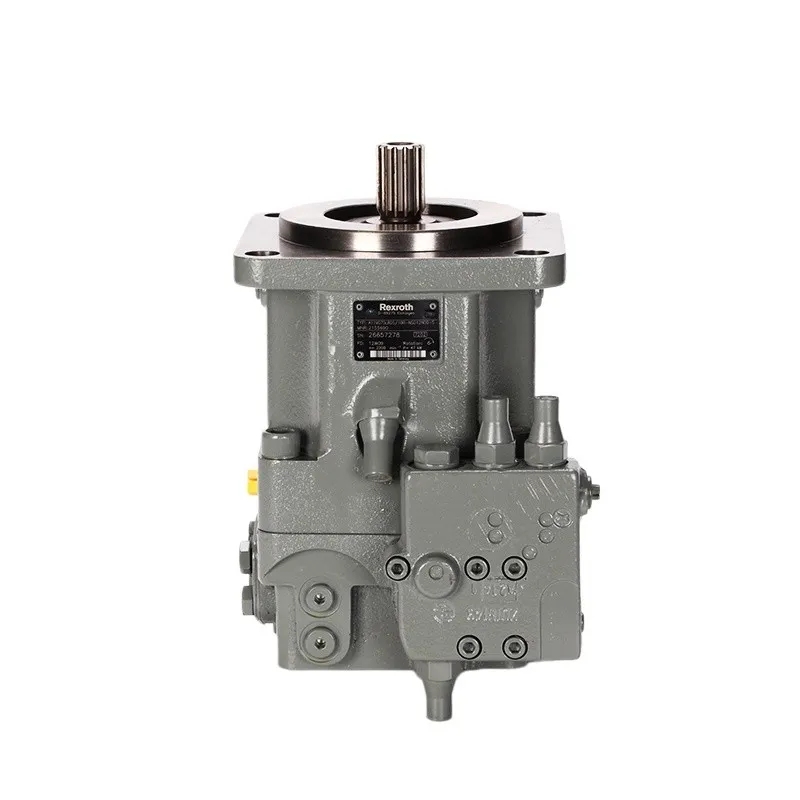

Rexroth A11VO75 Axial Piston Pump
Description:
The Rexroth A11VO75 is a variable displacement axial piston pump designed for open-circuit hydraulic systems. Featuring a swashplate design, it delivers reliable hydraulic power, high efficiency, and precise flow control for demanding mobile and industrial applications. The A11VO75 is widely used in construction machinery, mining equipment, material handling systems, and agricultural machinery where consistent performance under high-pressure conditions is required. It offers excellent durability, smooth operation, and multiple control options to meet various hydraulic system requirements.
share:
Rexroth A11VO75 Axial Piston Pump
| Parameter | Specification |
|---|---|
| Product Type | Axial Piston Variable Pump |
| Series | A11VO Series 10 |
| Hydraulic Circuit | Open Circuit |
| Design | Swashplate Type |
| Displacement (Max.) | 75 cm³/rev (74 cm³/rev nominal) |
| Displacement (Min.) | 0 cm³/rev |
| Nominal Pressure | 350 bar |
| Maximum Pressure | 400 bar |
| Maximum Speed | 2550 rpm |
| Maximum Flow Rate | 189 L/min |
| Power at 350 bar | 110 kW |
| Maximum Torque | 412 Nm |
| Rotation | Clockwise or Counterclockwise (model dependent) |
| Mounting Flange | SAE Standard |
| Shaft Type | Splined Shaft |
| Weight | Approx. 45 – 47 kg |
| Control Options | Pressure Control, Load Sensing, Power Control |
| Applications | Construction Machinery, Mobile Hydraulics, Industrial Equipment, Mining Machinery |
