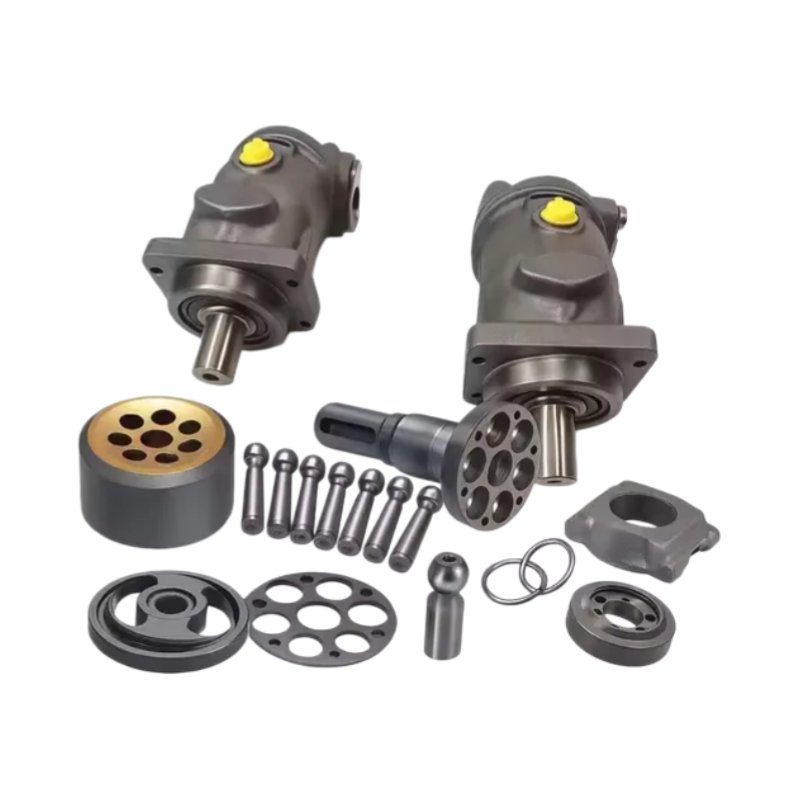

Rexroth A2FM Hydraulic Piston Motors
Description:
The Rexroth A2FM Hydraulic Piston Motor is a high-performance fixed displacement axial piston motor designed with a bent-axis construction for open and closed circuit hydrostatic drives. It delivers high efficiency, excellent starting characteristics, and reliable power transmission under demanding operating conditions. Widely used in construction machinery, mining equipment, marine systems, industrial machinery, and mobile hydraulic applications, the A2FM series is known for its compact design, high pressure capability, long service life, and low maintenance requirements.
share:
Rexroth A2FM Hydraulic Piston Motors
| Specification | Details |
|---|---|
| Product Name | Rexroth A2FM Hydraulic Piston Motor |
| Brand | Bosch Rexroth |
| Series | A2FM |
| Motor Type | Fixed Displacement Axial Piston Motor |
| Design | Bent-Axis Design |
| Circuit Type | Open & Closed Circuits |
| Displacement Range | 5 cc/rev – 1000 cc/rev (depending on model) |
| Rotation Direction | Bi-directional |
| Mounting Type | SAE Flange / ISO Mounting |
| Shaft Options | Splined Shaft / Keyed Shaft |
| Maximum Operating Pressure | Up to 450 bar |
| Peak Pressure | Up to 500 bar |
| Speed Range | Depends on displacement model |
| Hydraulic Fluid | Mineral Oil (HLP), Biodegradable Fluids (approved types) |
| Operating Temperature | -25°C to +80°C (depending on fluid) |
| Filtration Recommendation | ISO 4406 20/18/15 or better |
| Efficiency | High Volumetric & Mechanical Efficiency |
| Features | Compact Design, High Torque, Long Service Life, Low Noise |
| Applications | Construction Machinery, Mining Equipment, Marine, Agricultural Machinery, Industrial Hydraulic Systems |
