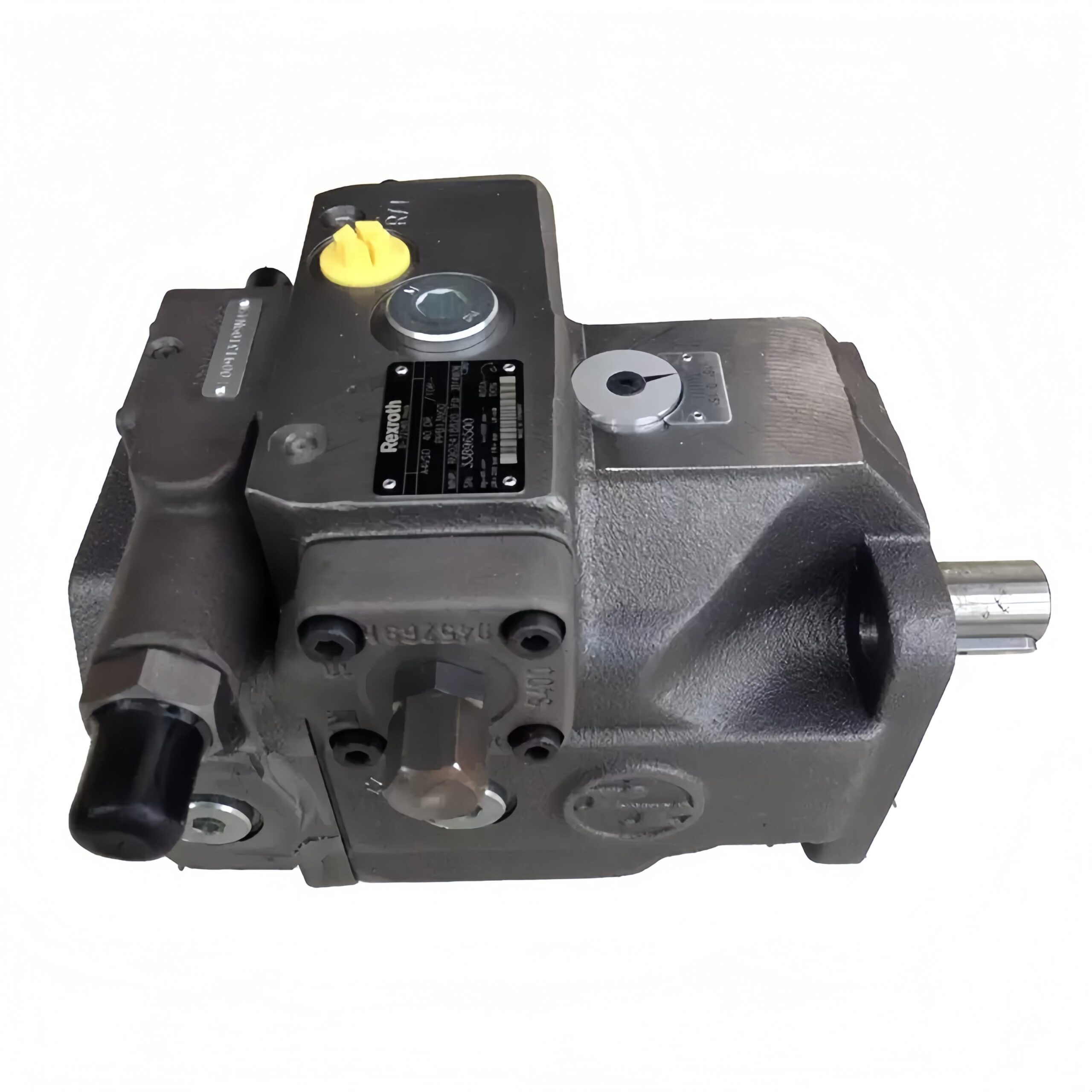

Rexroth A4VSO Hydraulic Piston Pump
Description:
The Rexroth A4VSO Hydraulic Piston Pump is a high-performance variable displacement axial piston pump designed for open-circuit hydraulic systems. Featuring a swashplate design, the A4VSO series delivers precise flow control, high efficiency, low noise operation, and long service life. It is widely used in industrial machinery, steel plants, mining equipment, marine systems, construction machinery, and hydraulic power units. The series is available in displacement sizes ranging from 40 cc/rev to 1000 cc/rev, with a nominal pressure of 350 bar and a maximum pressure of up to 400–450 bar, depending on the model.
share:
Rexroth A4VSO Hydraulic Piston Pump
| Parameter | Specification |
|---|---|
| Product Name | Rexroth A4VSO Hydraulic Piston Pump |
| Pump Type | Variable Displacement Axial Piston Pump |
| Design | Swashplate Design |
| Circuit Type | Open Circuit |
| Series | 10, 11, 30 |
| Displacement Range | 40 – 1000 cm³/rev |
| Nominal Pressure | 350 bar |
| Maximum Pressure | 400 – 450 bar |
| Rotation Direction | Clockwise / Counterclockwise |
| Mounting | Flange Mounted |
| Control Options | DR, DFR, LR2, HD, HS, MA, EM |
| Hydraulic Fluid | Mineral Oil, HFC Fluids (depending on model) |
| Operating Efficiency | High Volumetric Efficiency |
| Features | Low Noise, High Reliability, Long Service Life |
| Applications | Industrial Machinery, Marine, Mining, Metallurgy, Construction Equipment |
