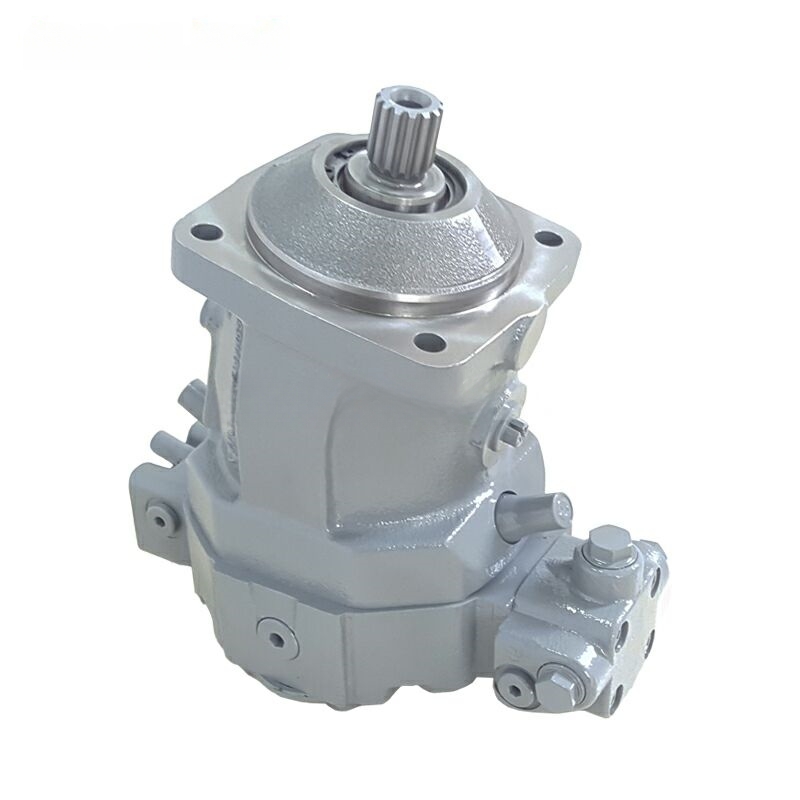

Rexroth A6VM Series Hydraulic Motor
Description:
The Rexroth A6VM Series is a variable displacement axial piston hydraulic motor featuring a robust bent-axis design for open and closed circuit hydrostatic drives. It is widely used in construction machinery, mining equipment, marine systems, industrial drives, and mobile hydraulic applications. The A6VM series offers high torque output, excellent starting efficiency, wide speed range, and continuously variable displacement from maximum displacement down to zero, making it ideal for demanding high-pressure applications.
share:
Rexroth A6VM Series Hydraulic Motor
| Parameter | Specification |
|---|---|
| Product Type | Variable Displacement Axial Piston Motor |
| Design | Bent-Axis Design |
| Circuit Type | Open and Closed Circuit |
| Displacement Range | 28 – 1000 cm³/rev |
| Series Available | Series 63, 65, 71 |
| Nominal Pressure | Up to 450 bar |
| Maximum Pressure | Up to 530 bar (depending on size) |
| Maximum Speed | Up to 8,750 rpm (model dependent) |
| Control Options | Hydraulic, Electric, Automatic, Two-Point Control |
| Rotation Direction | Bi-directional |
| Mounting Position | Flexible Installation |
| Efficiency | High Mechanical & Volumetric Efficiency |
| Applications | Mobile Machinery, Industrial Equipment, Marine Systems, Mining Equipment |
| Key Features | High Torque, Long Service Life, Wide Control Range, Compact Design |
