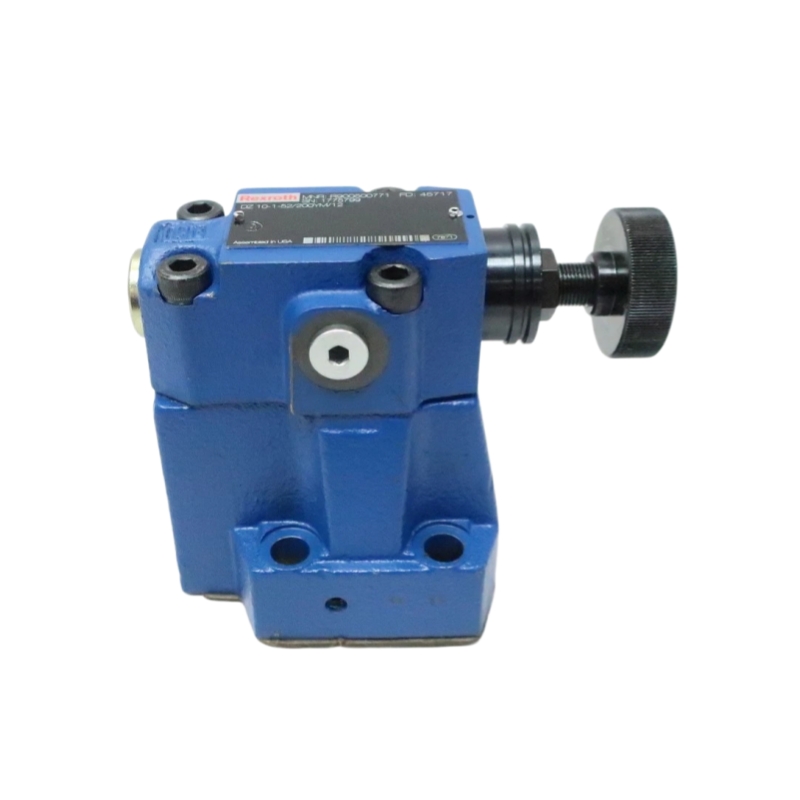

Rexroth DZ10-1-52 Pressure Sequene Valve

Rexroth DZ10-1-52 Pressure Sequene Valve

Description:

The Rexroth DZ10-1-52 is a high-performance pressure sequence valve designed to control the order of hydraulic operations by maintaining a preset pressure level before allowing flow to a secondary circuit. Known for its precision, durability, and stable performance, this valve is widely used in industrial hydraulic systems requiring reliable pressure sequencing.

share:

Rexroth DZ10-1-52 Pressure Sequene Valve

Parameter Specification
Model DZ10-1-52
Valve Type Pressure Sequence Valve
Size NG10 (CETOP 5)
Mounting Type Subplate Mounting
Maximum Operating Pressure Up to 315 bar
Flow Rate Up to 80 L/min
Pressure Adjustment Range Approx. 5 – 315 bar
Fluid Mineral Oil (HL, HLP)
Temperature Range -20°C to +80°C
Sealing Material NBR (standard)
Weight Approx. 2.5 – 3.5 kg
Leakage Internal leakage (design dependent)
Installation Position Optional
