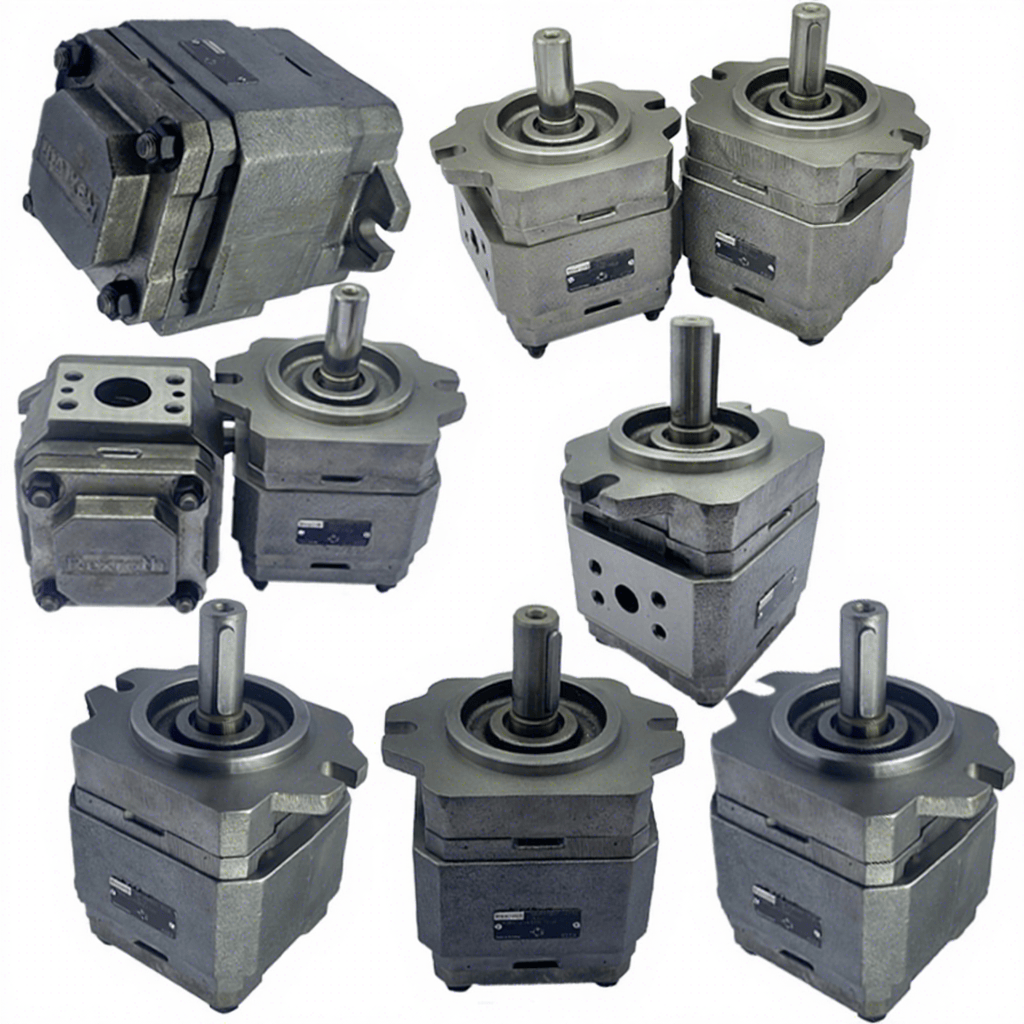

Rexroth PGH5 Series Internal Gear Pump

Rexroth PGH5 Series Internal Gear Pump

Description:

The Rexroth PGH5 Series internal gear pump is a high-performance hydraulic pump designed for industrial and mobile applications requiring smooth flow and high reliability. Featuring precision gear design and robust construction, PGH5 pumps deliver consistent displacement, low noise operation, and superior volumetric efficiency. Suitable for a wide range of fluid viscosities, these pumps are ideal for hydraulics in machinery, presses, material handling, and mobile equipment.

share:

Rexroth PGH5 Series Internal Gear Pump



Parameter Specification
Series PGH5 Series
Pump Type Internal Gear Pump
Displacement Range Multiple sizes (e.g., 5–40 cm³/rev)
Max Pressure Up to 250 bar (depending on model)
Max Speed Up to 3600 RPM
Flow Direction Bi-rotation capable
Mounting SAE / ISO Flange
Shaft Type Straight or Splined
Fluid Temperature Range −20°C to +80°C (typical)
Viscosity Range 10 to 500 mm²/s
Port Size According to model
Weight Approx. 5–12 kg (model dependent)
Seals Standard NBR / Optional FKM
Application Examples Industrial hydraulics, construction, mobile equipment, presses
