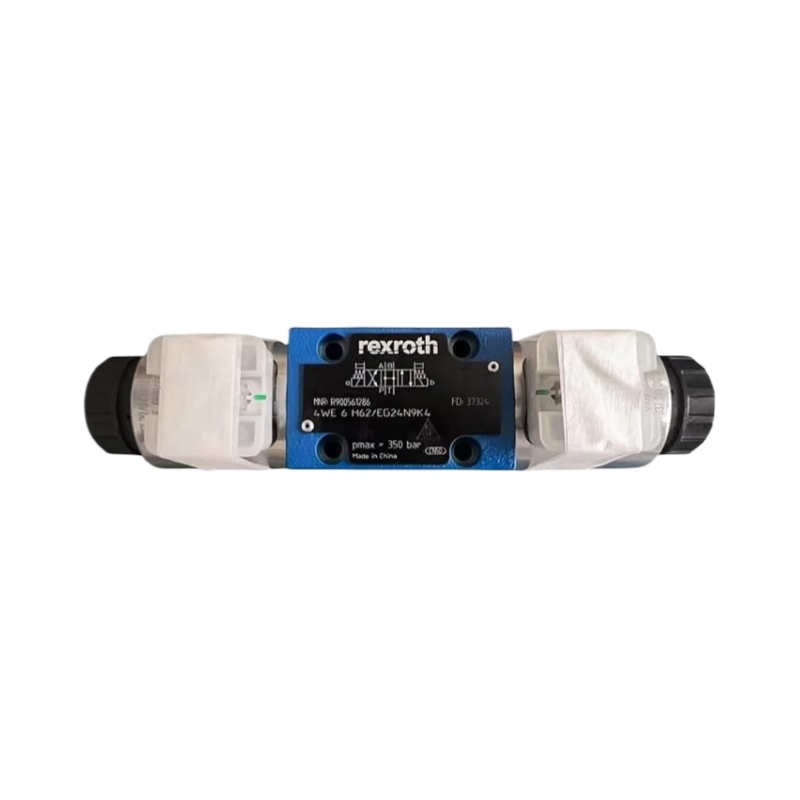

Rexroth Solenoid Directional Control Valve 24VDC
Description:
The Rexroth Solenoid Directional Control Valve 24VDC is an electrically actuated hydraulic valve designed to control the start, stop, and direction of hydraulic fluid flow within industrial and mobile hydraulic systems. Featuring a reliable 24VDC solenoid coil, this valve offers fast response, high switching accuracy, and long service life, making it suitable for demanding applications in manufacturing, construction machinery, material handling equipment, and hydraulic power units.
share:
Rexroth Solenoid Directional Control Valve 24VDC
| Parameter | Specification |
|---|---|
| Product Name | Rexroth Solenoid Directional Control Valve |
| Voltage | 24VDC |
| Valve Type | Solenoid Directional Control Valve |
| Actuation | Electromagnetic Solenoid |
| Mounting Type | Subplate Mounting (NG6/CETOP 03 Typical) |
| Fluid | Hydraulic Oil / Mineral Oil |
| Operating Pressure | Up to 350 bar |
| Rated Flow | Up to 80 L/min |
| Port Configuration | 4-Way |
| Positions | 2 Position / 3 Position |
| Coil Protection | IP65 |
| Ambient Temperature | -30°C to +50°C |
| Fluid Temperature | -20°C to +80°C |
| Body Material | Cast Iron |
| Seal Material | NBR / FKM |
| Application | Industrial & Mobile Hydraulics |
| Brand | Rexroth |
