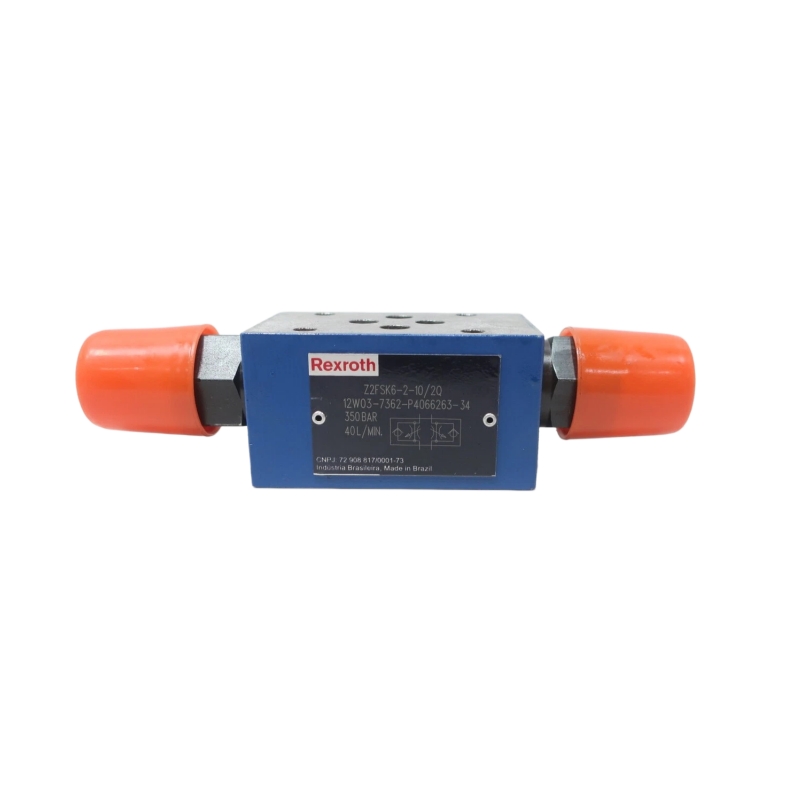

Rexroth Z2FSK6-2-10 Hydraulic Check Valve

Rexroth Z2FSK6-2-10 Hydraulic Check Valve

Description:

The Rexroth Z2FSK6-2-10 is a sandwich plate type double throttle check valve designed to precisely control flow in hydraulic systems. It allows adjustable throttling in one direction while enabling free flow in the reverse direction, making it ideal for actuator speed control and stability. This valve is widely used in industrial and mobile hydraulic applications where accurate flow regulation is required.

share:

Rexroth Z2FSK6-2-10 Hydraulic Check Valve

Parameter Specification
Model Z2FSK6-2-10
Type Double throttle check valve
Nominal Size NG6 (Size 6)
Mounting Standard ISO 4401-03
Max Operating Pressure 210 bar
Max Flow 40 L/min
Fluid Type Mineral oil (HL, HLP), biodegradable fluids
Fluid Temperature Range -20°C to +80°C
Viscosity Range 10 – 800 mm²/s
Weight Approx. 0.5 kg
Function Flow control in two actuator ports
Control Type Meter-in / Meter-out
Adjustment Hex socket screw with locknut
Installation Optional orientation
