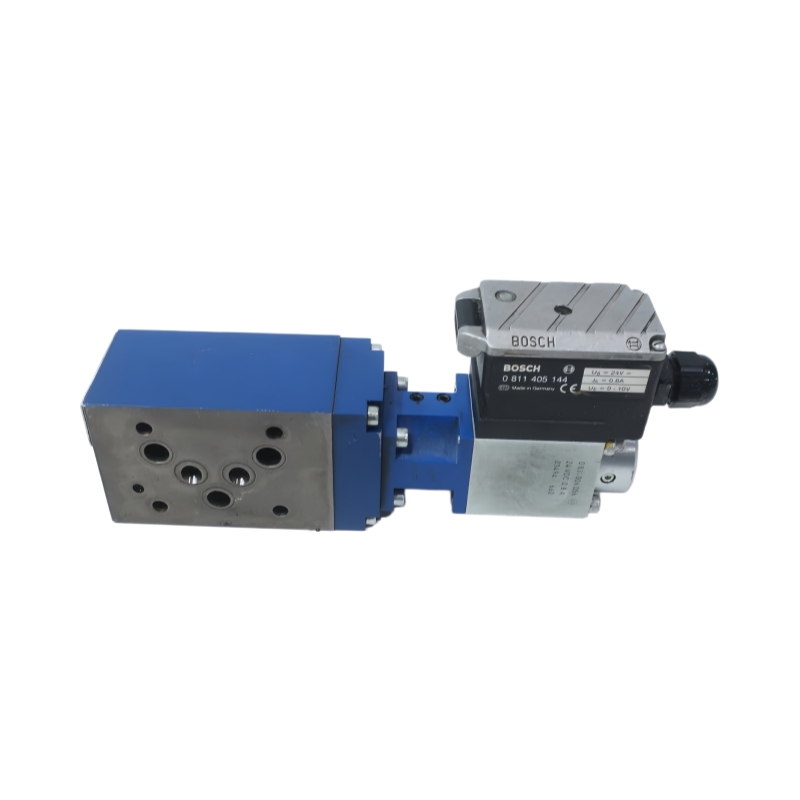

Rexroth ZDRE Hydraulic Directional Control Valve
Description:
The Bosch Rexroth ZDRE Hydraulic Directional Control Valve is a high-performance pressure reducing valve designed for precise hydraulic pressure control in industrial and mobile hydraulic systems. It provides stable downstream pressure regulation, fast response, and reliable operation under varying load conditions. The ZDRE series is widely used in machine tools, hydraulic power units, automation equipment, and heavy-duty industrial machinery requiring accurate pressure adjustment and directional control.
share:
Rexroth ZDRE Hydraulic Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Name | Rexroth ZDRE Hydraulic Directional Control Valve |
| Valve Type | Pressure Reducing Directional Control Valve |
| Series | ZDRE |
| Manufacturer | Bosch Rexroth |
| Mounting Type | Subplate Mounting |
| Nominal Size | NG6 / CETOP 03 |
| Maximum Operating Pressure | Up to 315 bar |
| Maximum Flow Rate | Up to 80 L/min |
| Control Type | Direct Operated |
| Hydraulic Fluid | Mineral Oil (HL, HLP) |
| Fluid Temperature Range | -20°C to +80°C |
| Viscosity Range | 2.8 to 500 mm²/s |
| Sealing Material | NBR / FKM |
| Installation Position | Optional |
| Application | Industrial Hydraulic Systems |
| Response Time | Fast Dynamic Response |
| Leakage | Low Internal Leakage |
| Porting Standard | ISO 4401 |
| Weight | Approx. 1.5 – 2.5 kg |
