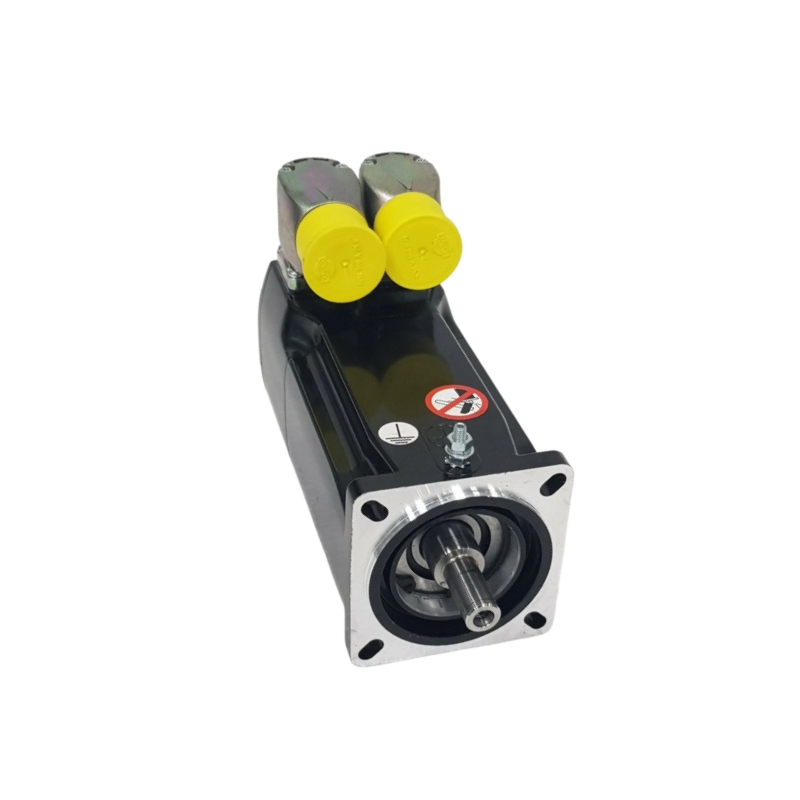

Schneider BSH0701P11A2A Servo Motor
Description:
The Schneider BSH0701P11A2A Servo Motor is a high-performance AC servo motor designed for precision motion control applications. It belongs to Schneider Electric’s Lexium BSH servo motor series and delivers reliable torque output, high-speed operation, and stable positioning accuracy for industrial automation systems. This motor is widely used in CNC machinery, packaging equipment, robotics, and automated production lines requiring smooth and accurate motion control.
share:
Schneider BSH0701P11A2A Servo Motor
| Parameter | Specification |
|---|---|
| Product Model | BSH0701P11A2A |
| Manufacturer | Schneider Electric |
| Product Type | AC Servo Motor |
| Series | Lexium BSH |
| Rated Power | 700 W |
| Continuous Stall Torque | 1.4 Nm |
| Peak Stall Torque | 2.66 Nm |
| Maximum Mechanical Speed | 8000 RPM |
| Rated Speed | 3000 RPM |
| Rated Voltage | 480 VAC |
| Shaft Type | Keyed Shaft |
| Brake | Without Brake |
| Protection Rating | IP50 / IP40 |
| Encoder Type | Sincos Single Turn |
| Motor Frame Size | 70 mm |
| Shaft Diameter | 11 mm |
| Mounting Type | Flange Mount |
| Connection Type | Connector |
| Cooling Method | Natural Cooling |
| Application | CNC, Robotics, Packaging, Automation |
| Country Standard | IEC |
| Product Status | Active |
