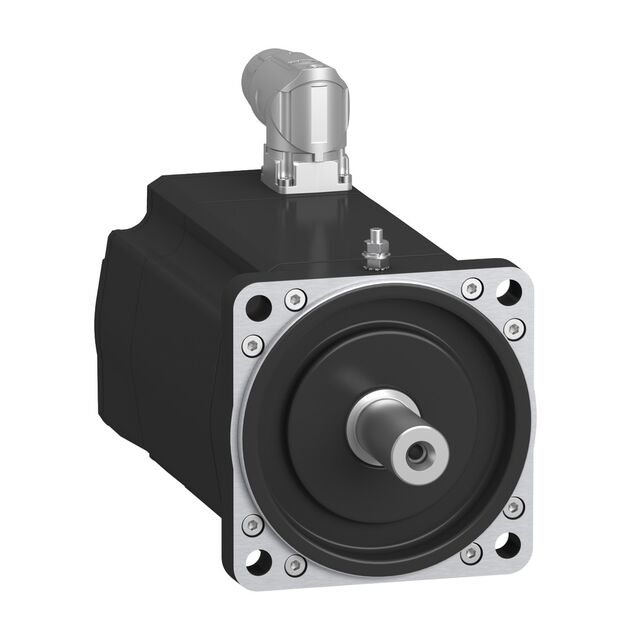

Schneider SH31001 Motor
Description:
The Schneider SH31001 Motor is a high-performance servo motor designed for industrial automation, CNC machinery, packaging equipment, and motion control systems. It belongs to the Schneider Electric SH3 servo motor series and offers stable torque output, high precision positioning, compact structure, and reliable operation in demanding environments. The motor supports high-speed performance up to 6000 rpm and is compatible with PacDrive 3 systems.
share:
Schneider SH31001 Motor
| Parameter | Specification |
|---|---|
| Product Name | Schneider SH31001 Servo Motor |
| Series | SH3 Series |
| Manufacturer | Schneider Electric |
| Motor Type | AC Servo Motor |
| Rated Voltage | 115–480 V |
| Phase | Three Phase |
| Maximum Speed | 6000 rpm |
| Continuous Stall Torque | 3.3 N·m |
| Peak Stall Torque | 9.6 N·m |
| Continuous Power | 1190 W |
| Nominal Output Power | 410–1630 W |
| Maximum Current Irms | 12 A |
| Shaft Diameter | 19 mm |
| Shaft Length | 40 mm |
| Encoder Type | Absolute SinCos Hiperface |
| Protection Rating | IP54 / IP65 |
| Mounting Type | International Standard Flange |
| Motor Flange Size | 100 mm |
| Rotor Inertia | 1.4 kg·cm² |
| Holding Brake | Optional / Without Brake |
| Cooling Type | Natural Cooling |
| Application | Industrial Automation & Motion Control |
