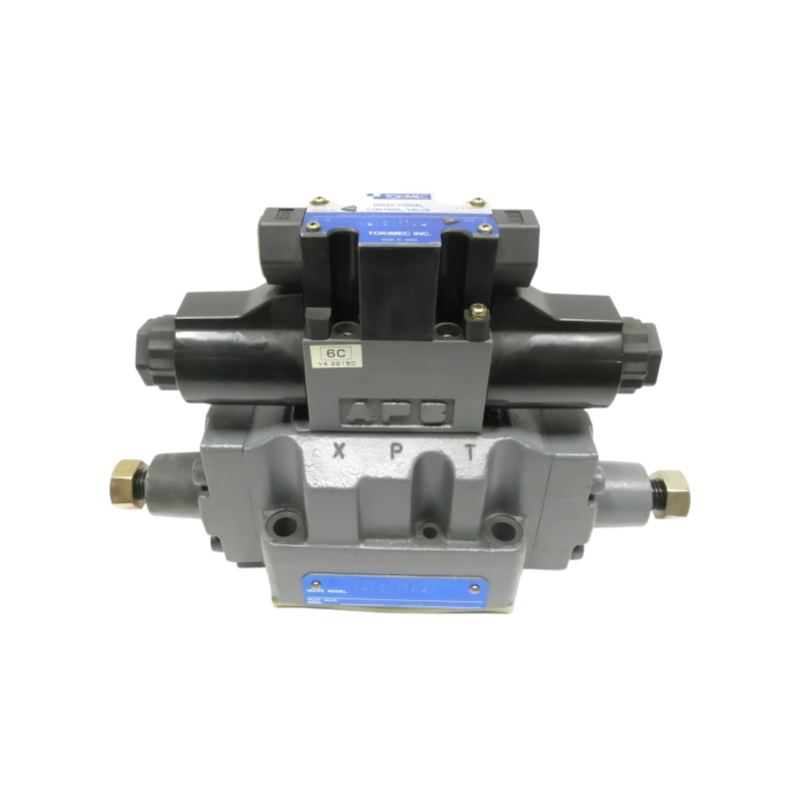

Tokimec DG5V-7-6C-1-E-P7-H-82-JA Hydraulic Directional Control Valve
Description:
The Tokimec DG5V-7-6C-1-E-P7-H-82-JA is a pilot-operated hydraulic directional control valve designed for high-flow industrial hydraulic systems. Manufactured by Tokyo Keiki (Tokimec), this DG5V-7 series valve provides stable spool switching, reliable pressure handling, and long service life in demanding applications such as injection molding machines, hydraulic presses, steel plants, and construction machinery.
share:
Tokimec DG5V-7-6C-1-E-P7-H-82-JA Hydraulic Directional Control Valve
| Parameter | Specification |
|---|---|
| Product Model | DG5V-7-6C-1-E-P7-H-82-JA |
| Valve Type | Hydraulic Directional Control Valve |
| Operation Type | Pilot Operated |
| Control Type | Solenoid Operated |
| Spool Type | 6C |
| Mounting Type | Subplate / Manifold Mounted |
| Interface Standard | ISO 4401-07 |
| Stage | Two Stage |
| Spring Arrangement | Spring Centered |
| Electrical Connection | DIN 43650 Connector |
| Seal Material | Buna-N |
| Pilot Pressure | External Pilot |
| Drain Type | External Drain |
| Brand | Tokimec / Tokyo Keiki |
| Application | Industrial Hydraulic Systems |
| Installation | Horizontal or Vertical |
| Medium | Hydraulic Oil |
| Series | DG5V-7 |
| Country of Origin | Japan |
