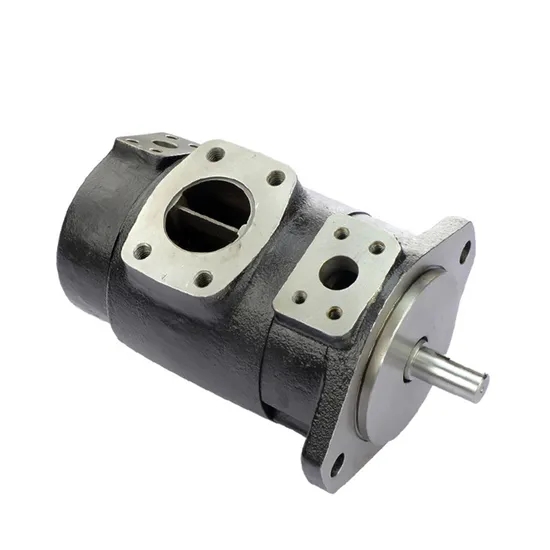

TOKIMEC SQP Series Vane Pump
Description:
The TOKIMEC SQP Series Vane Pump is a high-performance hydraulic vane pump widely used in industrial and mobile hydraulic systems. Designed for low noise operation, stable pressure output, and long service life, the SQP series is suitable for injection molding machines, construction equipment, machine tools, and hydraulic power units. Its cartridge design allows easy maintenance and fast replacement, helping reduce downtime and maintenance costs.
share:
TOKIMEC SQP Series Vane Pump
| Parameter | Specification |
|---|---|
| Product Name | TOKIMEC SQP Series Vane Pump |
| Pump Type | Fixed Displacement Vane Pump |
| Series | SQP1 / SQP2 / SQP3 / SQP4 |
| Mounting Type | Flange Mount |
| Rotation Direction | Right-hand / Left-hand |
| Maximum Pressure | Up to 21 MPa |
| Maximum Speed | 1800 RPM |
| Flow Range | 8 – 237 mL/rev |
| Fluid Type | Hydraulic Oil |
| Viscosity Range | 18 – 68 mm²/s |
| Operating Temperature | -20°C to +80°C |
| Noise Level | Low Noise Design |
| Application | Industrial & Mobile Hydraulic Systems |
| Material | High-strength Cast Iron |
| Feature | Replaceable Cartridge Design |
| Sealing Type | High-performance Oil Seal |
| Efficiency | High Volumetric Efficiency |
